System 100 component

Model 102

Part of System 100. A front-loaded horn system for large clubs and outdoor festivals, with touring and installation models.

Discuss Model 102 Hear a system →

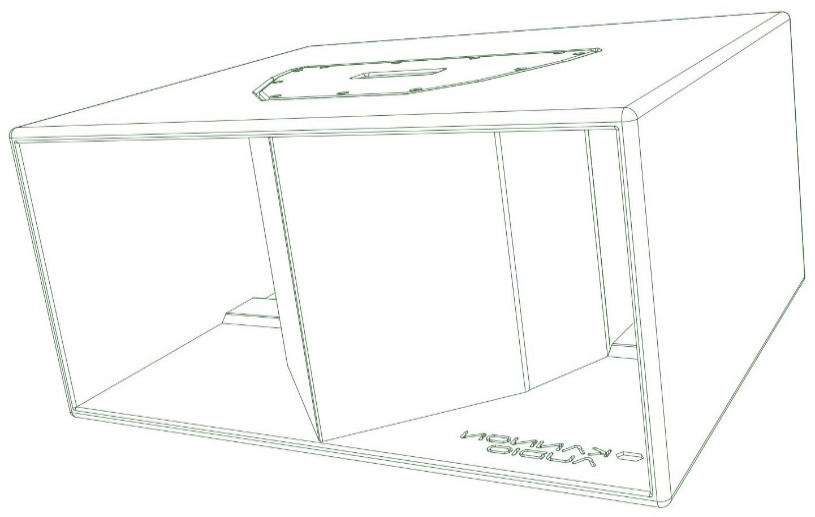

Model 102 primary design view — Design view · Open full size

Model102 Install

Product features

Grand stack model
15mm plywood enclosure
Lightweight
Low weight Neodymium magnets throughout
This series features the same width and smart stack
Neutrik speakON* NL4 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
Driver	Frequency characteristic	Power (AES)	Nominal Impedance
10"	60Hz-7kHz	250w	16Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response	60Hz - 7kHz
Nominal dispersion	90 Horizontal
Connectors	2 x SpeakON* NL4

System notes

Model102 has a horizontal directivity of 90. Model102B has a simple enclosure design for the Grand stack. Use with Model101G and Model103.

Accessories

Spacer

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 102 — cabinet design illustration, view 1 — Cabinet design illustration · View full size

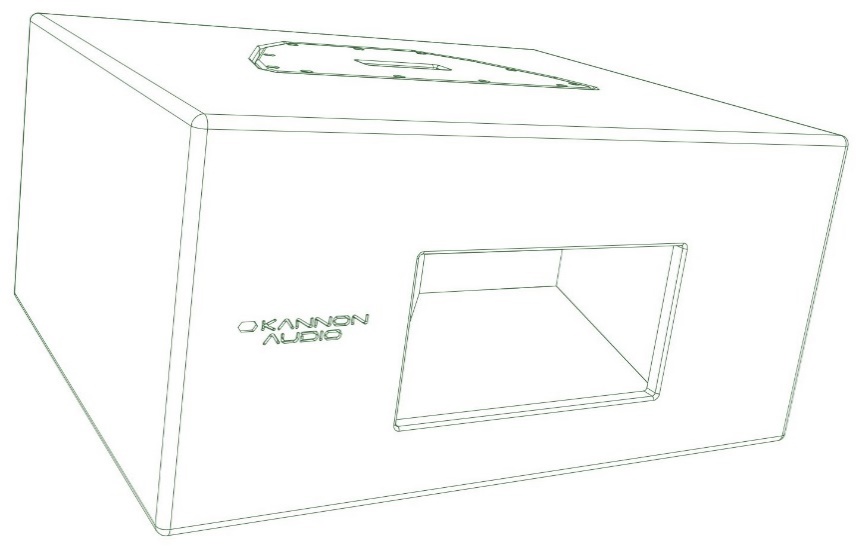

Model 102 — cabinet design illustration, view 2 — Cabinet design illustration · View full size

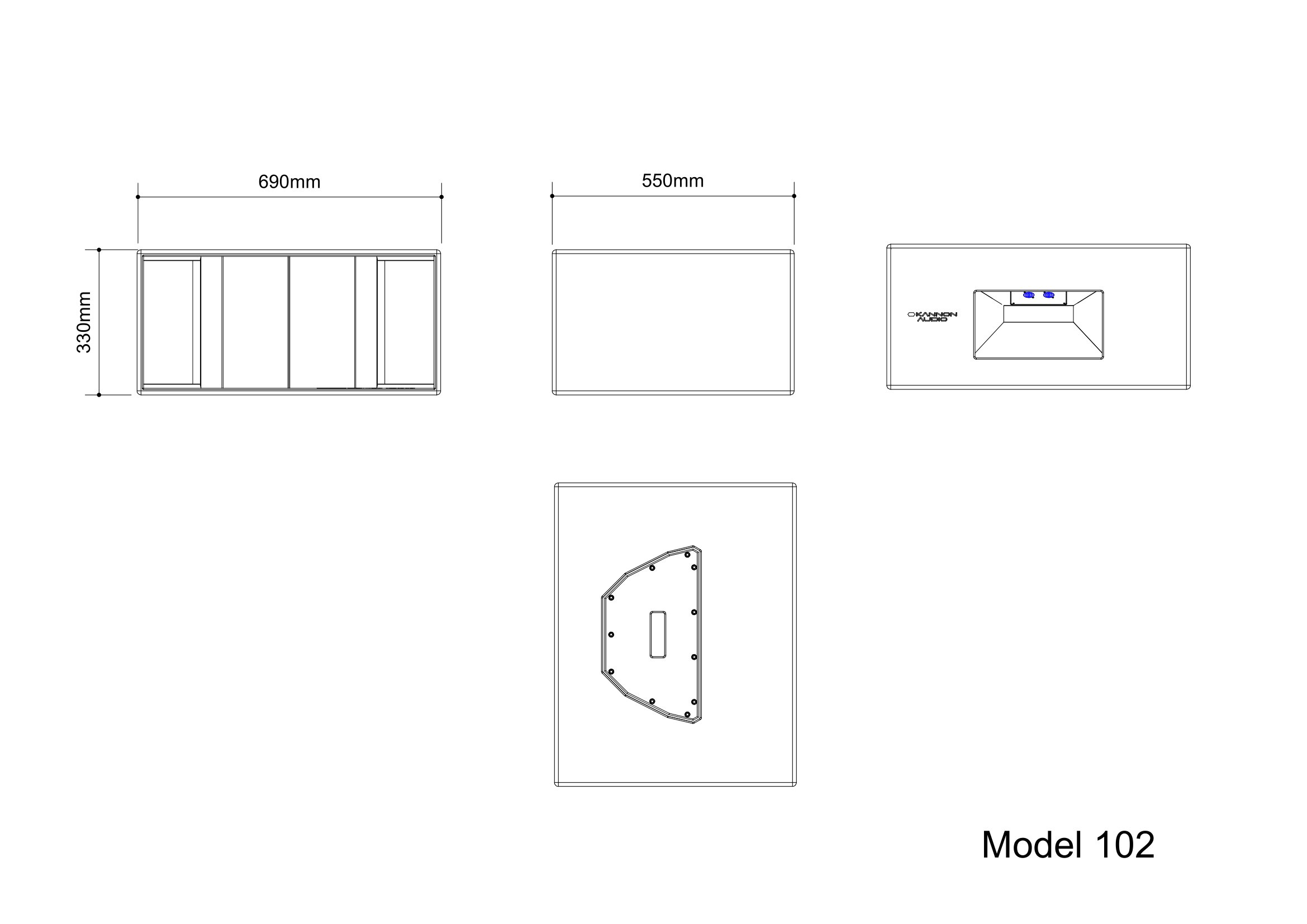

Model 102 — technical drawing, view 3 — Technical drawing · View full size

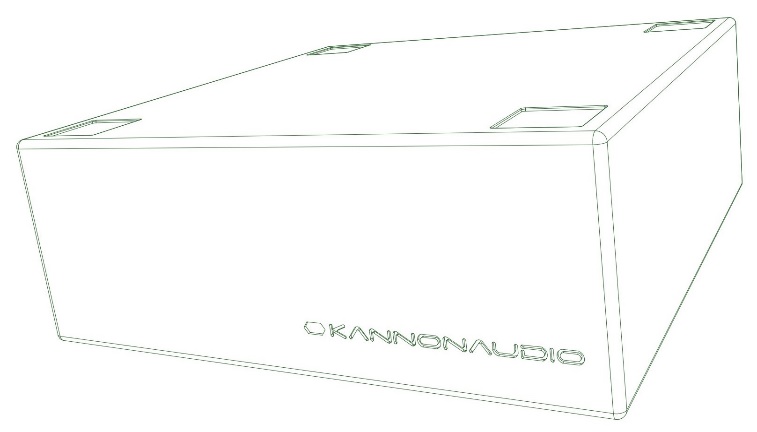

Model 102 — accessory illustration, view 4 — Accessory illustration · View full size

Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model102”. Confirm the specification for your order with Kannonaudio.
