System 100 component
Model 102T
Part of System 100. A front-loaded horn system for large clubs and outdoor festivals, with touring and installation models.
Model102 Touring
Product features
- Frying model
- 15mm plywood enclosure
- Lightweight
- Low weight Neodymium magnets throughout
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 10" | 60Hz-7kHz | 250w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 60Hz - 7kHz |
|---|---|
| Nominal dispersion | 90 Horizontal |
| Connectors | 2 x SpeakON* NL4 |
System notes
Model102 has a horizontal directivity of 90. Model102 was designed for frying. Since all Unit drivers are located inside the enclosure, it is a structure that will not be damaged by a little rain. Use with Model101 and Model103.

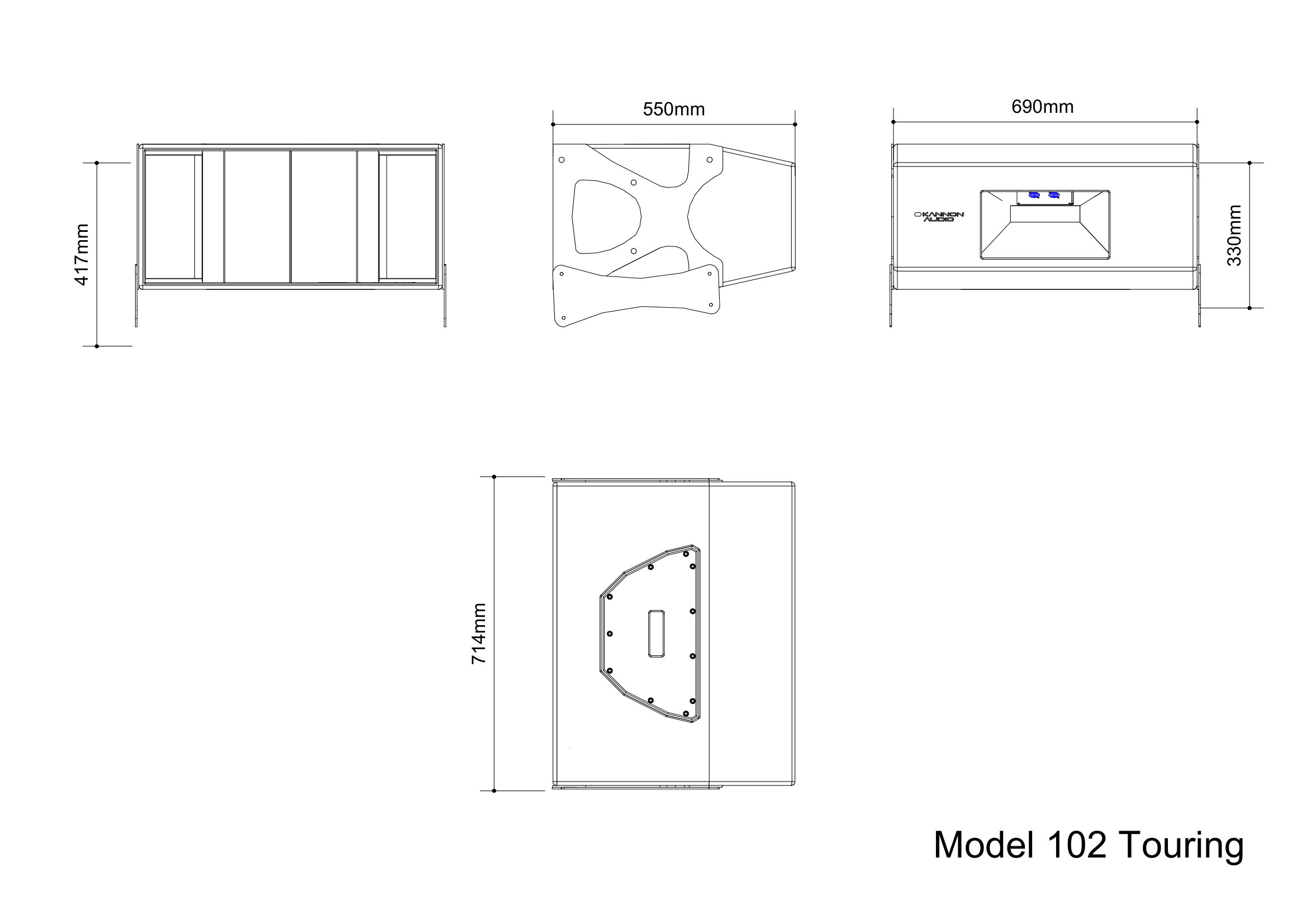

Technical drawings

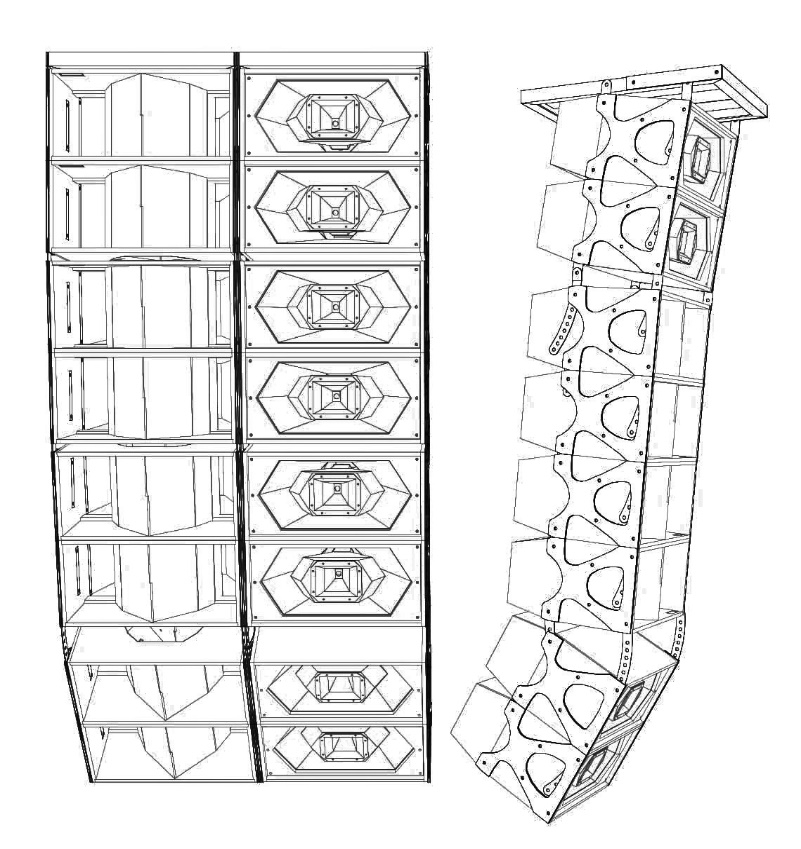

Frying image
Frying system for touring It is frying system for exclusive use of Model101 and Model102 of System100 Vertical is mechanism that allows a minimum adjustment 2.5. This system can cover the venue thoroughly.
Accessories

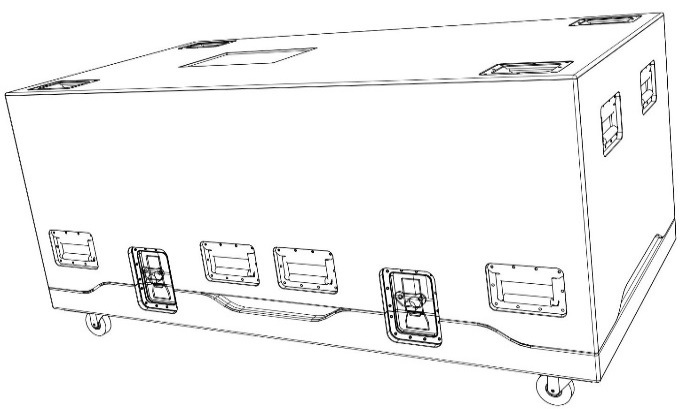

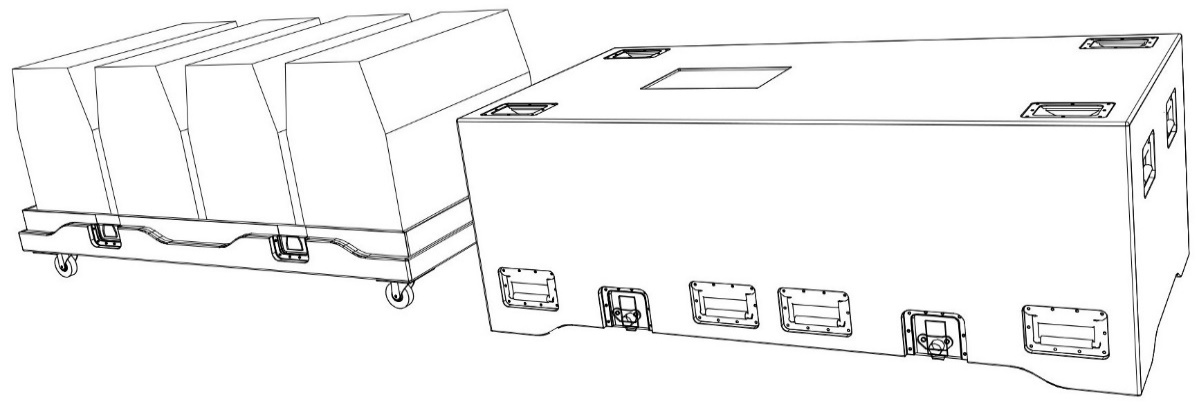

- Flight case
Original drawings & downloads

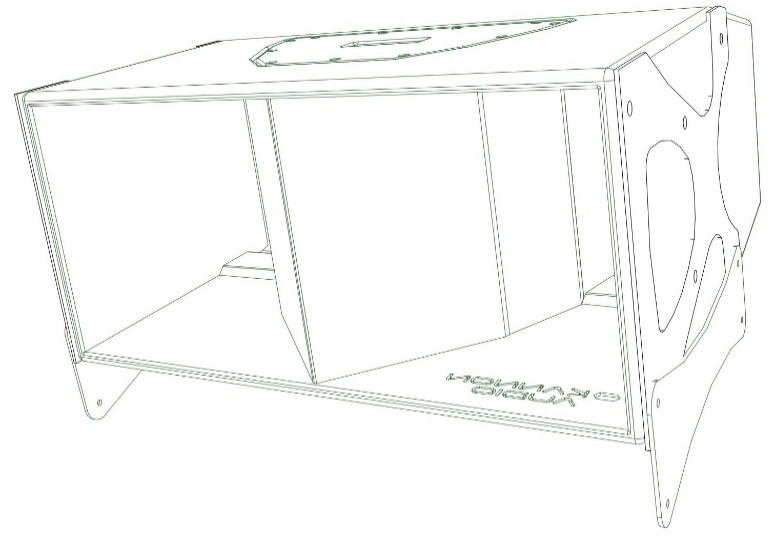

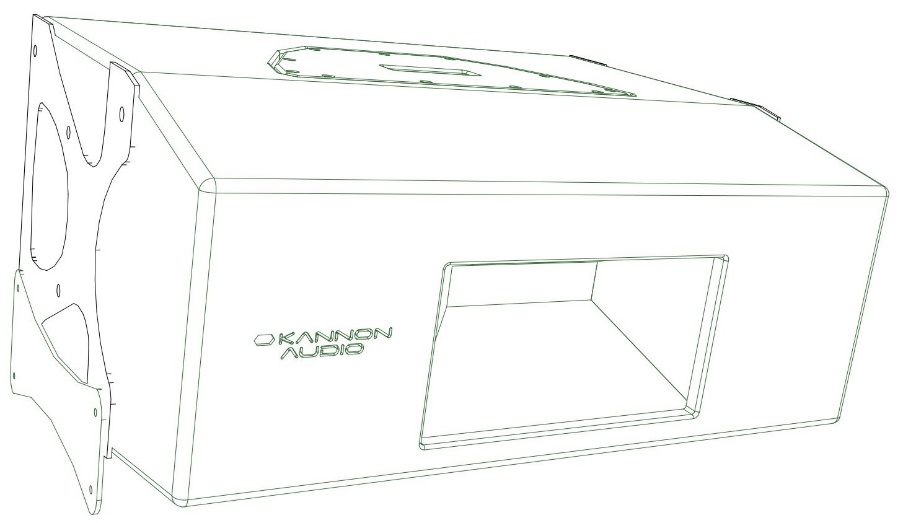

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model102T”. Confirm the specification for your order with Kannonaudio.
