System 100 component
Model 101T
Part of System 100. A front-loaded horn system for large clubs and outdoor festivals, with touring and installation models.
Model101 Touring
Product features
- Frying model
- For middle field and far field
- 15mm plywood enclosure
- Lightweight
- Low weight Neodymium magnets throughout
- Fibre glass molded horn
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 8” | 290Hz-6kHz | 200w | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 300Hz - 20kHz |
|---|---|
| Nominal dispersion | 75 Horizontal x 25 Vertical |
| Connectors | 2 x SpeakON* NL4 |
System notes
Model101 has a horizontal directivity of 75. Since it has a wider directivity than the front road horns of other companies, it is possible to cover a wide area simply by stacking the main speakers vertically. Since all Unit drivers are located inside the enclosure, it is a structure that will not be damaged by a little rain. Model101 was designed for frying. Use with Model102 and Model103.

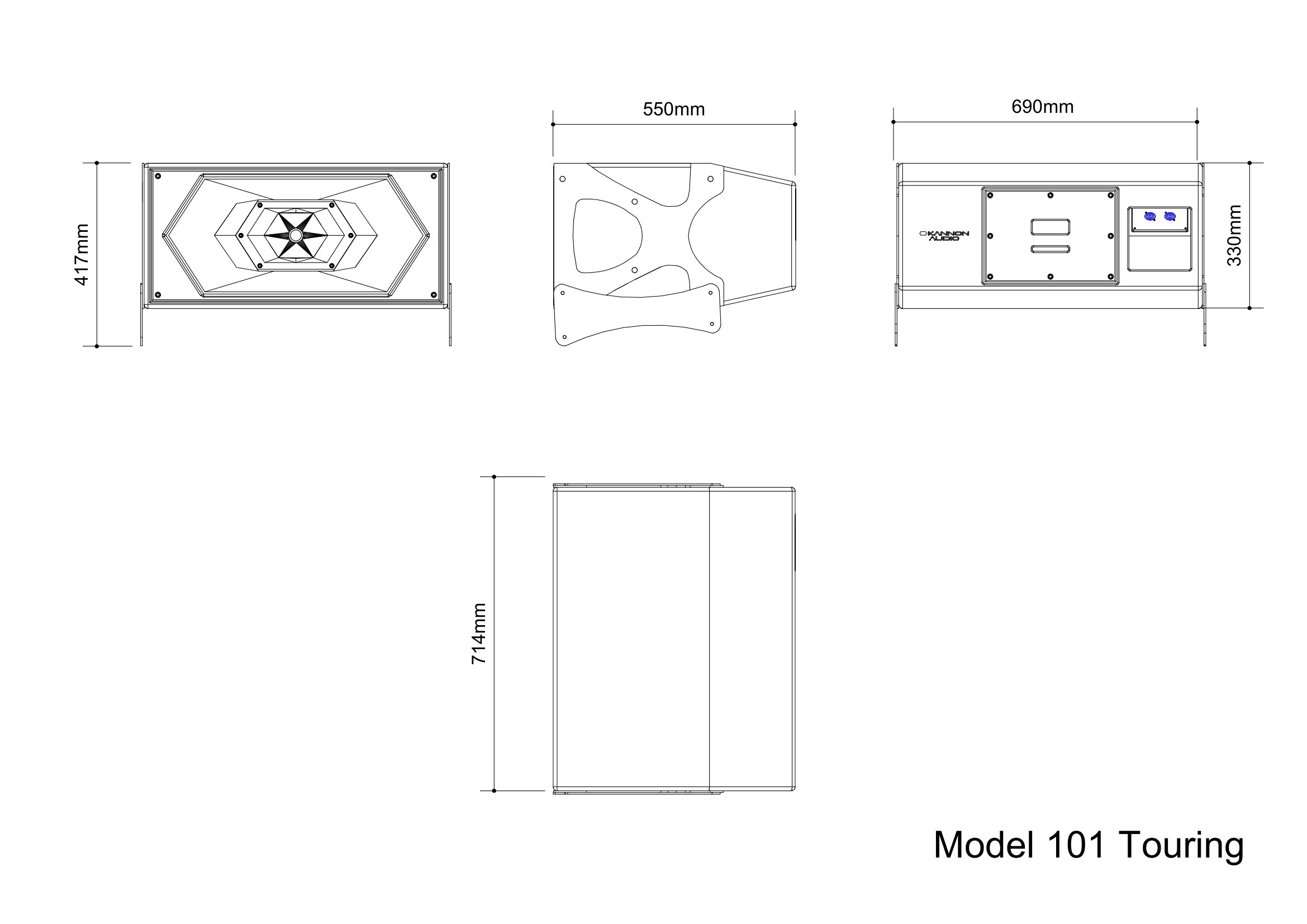

Technical drawings

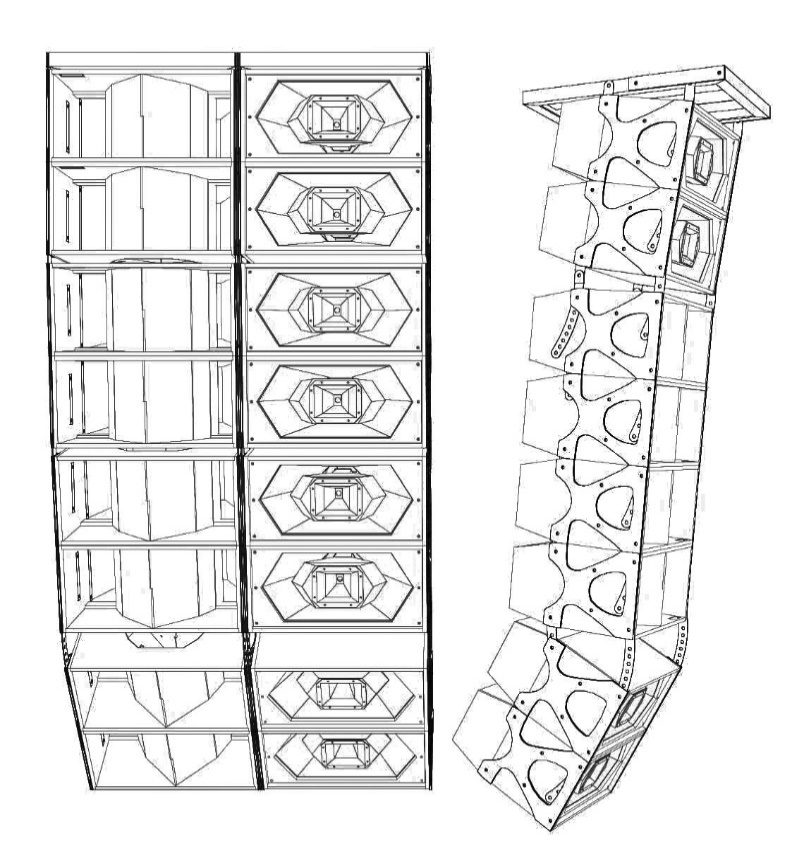

Frying image
Frying system for touring It is frying system for exclusive use of Model101 and Model102 of System100 Vertical is mechanism that allows a minimum adjustment 2.5. This system can cover the venue thoroughly.
Accessories

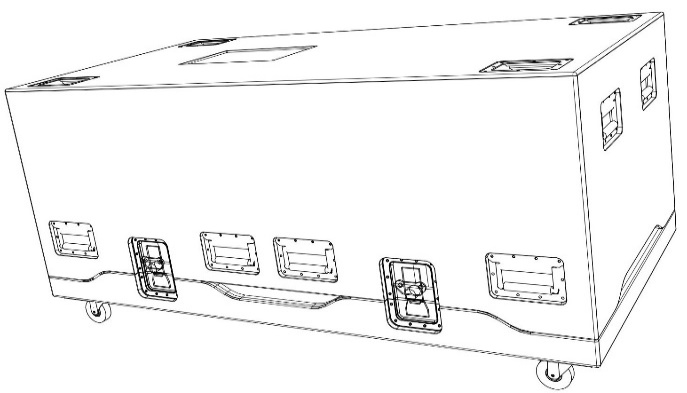

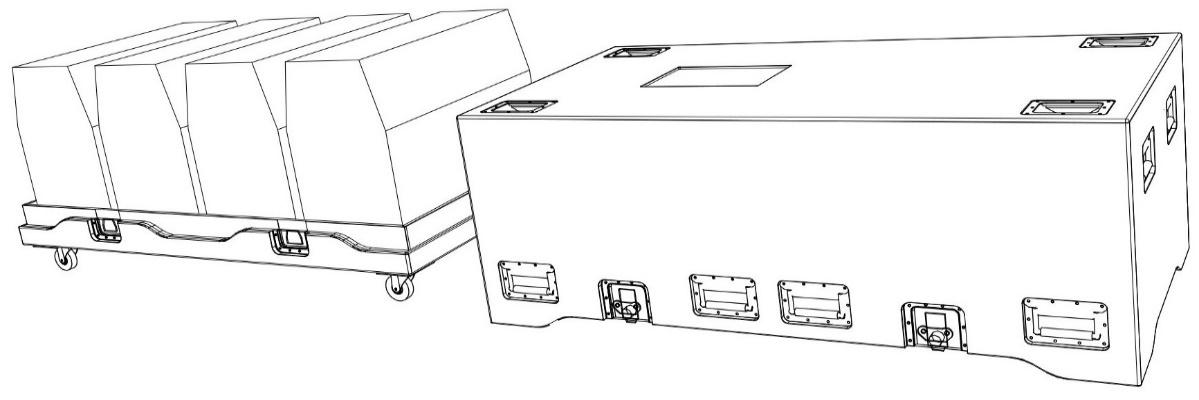

- Flight case
Original drawings & downloads

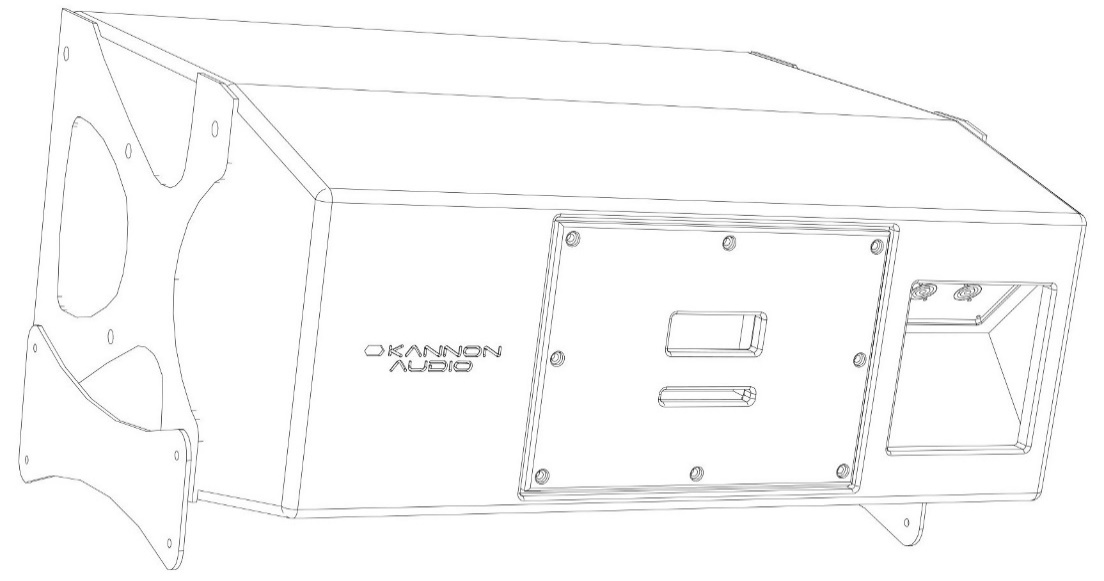

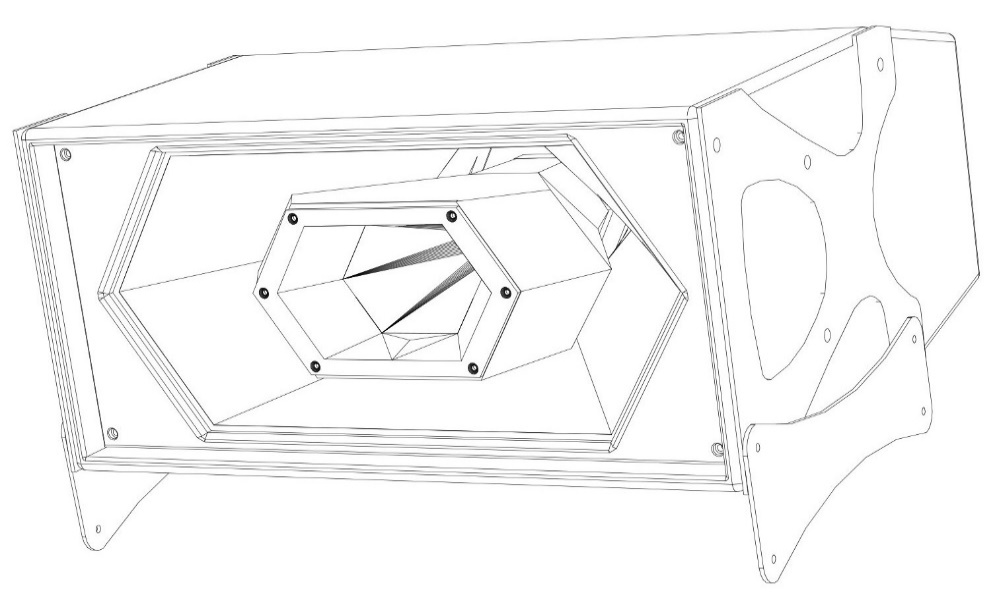

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model101T”. Confirm the specification for your order with Kannonaudio.
