Model 801 Skeleton

Part of System 800. A compact front-loaded horn system for small clubs through medium-sized outdoor events, with matching-width cabinets and subwoofer options.

Discuss Model 801 SkeletonHear a system →

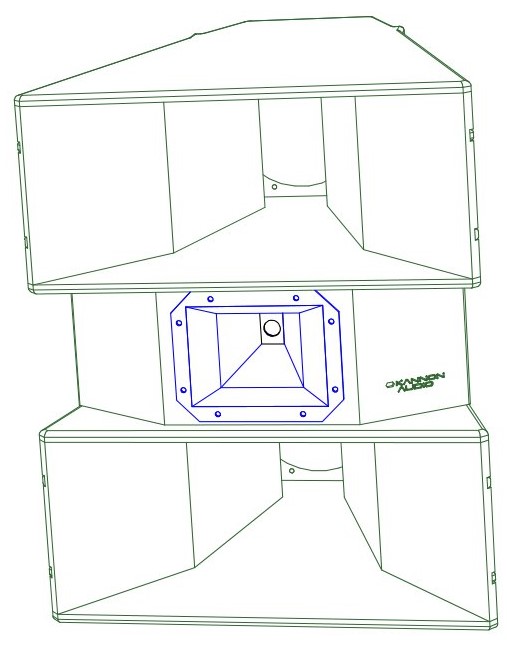

Model 801 Skeleton primary design view
Design view · Open full size

Product features

  • Grand stack model
  • 12mm plywood enclosure
  • Lightweight
  • Low weight Neodymium magnets throughout
  • Neutrik speakON* NL4 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
DriverFrequency characteristicPower (AES)Nominal Impedance
8”290Hz-6kHz200w16Ohm
1”1kHz-20kHz50w16Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response300Hz - 20kHz
Nominal dispersion75 Horizontal
Connectors2 x SpeakON* NL4

System notes

Model801 Skeleton has a horizontal directivity of 75. Since it has a wider directivity than the front road horns of other companies, Model801 Skereton has a simple enclosure design for the Grand stack. Use with Model803 and Model804 or Model805.

Accessories

  • Spacer
  • Model803S
  • Model805S
  • Model800A Hi

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 801 Skeleton — cabinet design illustration, view 1
Cabinet design illustration · View full size

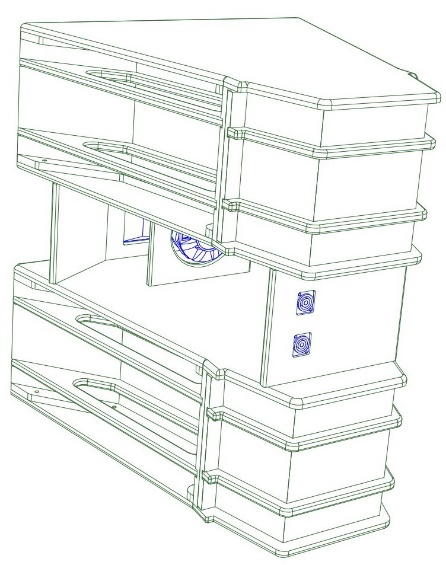

Model 801 Skeleton — cabinet design illustration, view 2
Cabinet design illustration · View full size

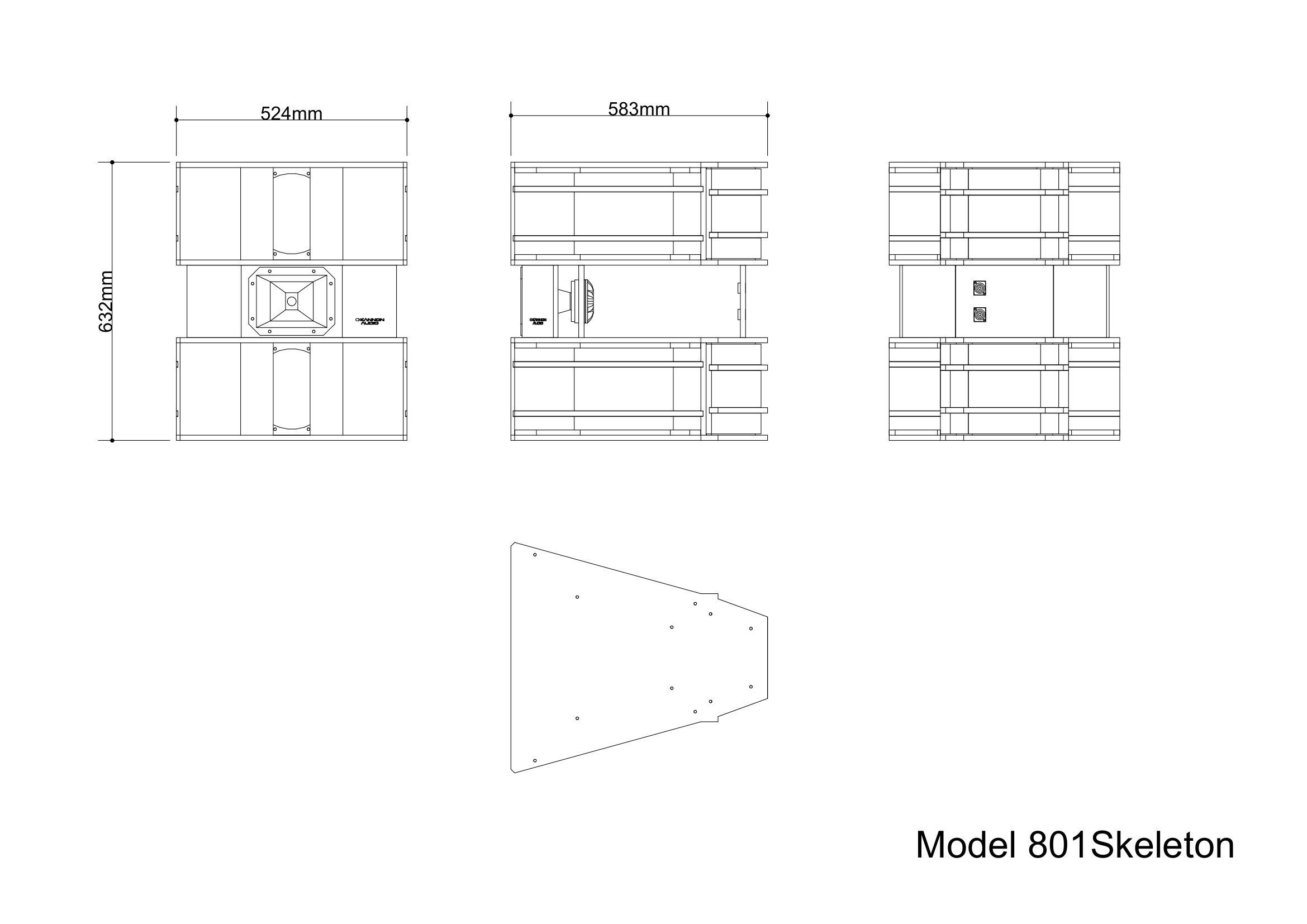

Model 801 Skeleton — technical drawing, view 3
Technical drawing · View full size

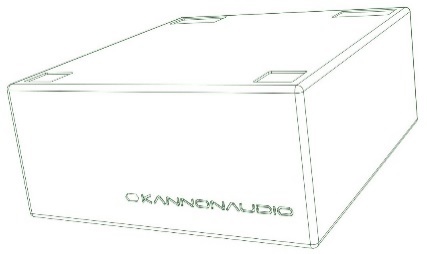

Model 801 Skeleton — accessory illustration, view 4
Accessory illustration · View full size

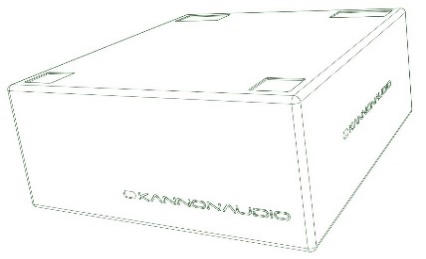

Model 801 Skeleton — accessory illustration, view 5
Accessory illustration · View full size
Model 801 Skeleton — accessory illustration, view 6
Accessory illustration · View full size

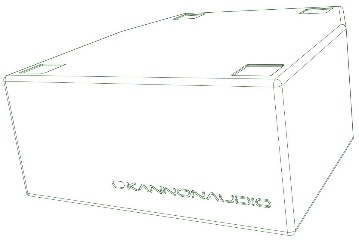

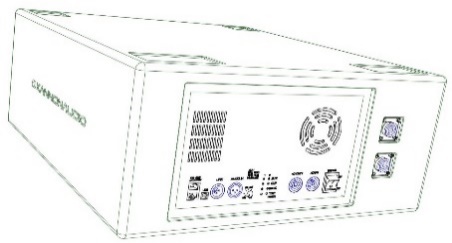

Model 801 Skeleton — accessory illustration, view 7
Accessory illustration · View full size
Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model801 Skeleton”. Confirm the specification for your order with Kannonaudio.
