System 700 component
Model 710B
Part of System 700. Installation speakers and compact party systems for music bars, lounges, small clubs and smaller events.
Product features
- Active model
- 18mm MDF enclosure
- Uses a common NL4 connector
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 10” | 35Hz-3kHz | 350w | 8Ohm |
Scroll sideways to see all specifications.
| Frequency response | 35Hz - 3kHz |
|---|
Amplifier specifications
Scroll sideways to see all specifications.
| 8Ω Stereo Power | L:1000W+M:600W+H:600W |
|---|---|
| 4Ω Stereo Power | L:1800W+M:900W+H:900W |
| Frequency Response | 20Hz-20KHz ±1dB |
| THD+N 1KHz 1W 8Ω | <0.1% |
| Signal to Noise Ratio 1KHz | >100dB |
| Channel Separation 1KHz | >80dB |
| Class | D |
| Protection | Short, DCP, OVP, UVP, OCP, OTP |
| Operating Voltage | 110V version: 90V-135V / 220V versioin: 180V-265V |
| input Sensitivity | 1V |
| Input Impedance | 20KΩ |
| DSP Fuction | MUTE, Polarity, Gain, Delay, Limiter, EQ, Xover, AFP |
| DSP Control | RS-485 |
System notes
Use with System700
Original drawings & downloads

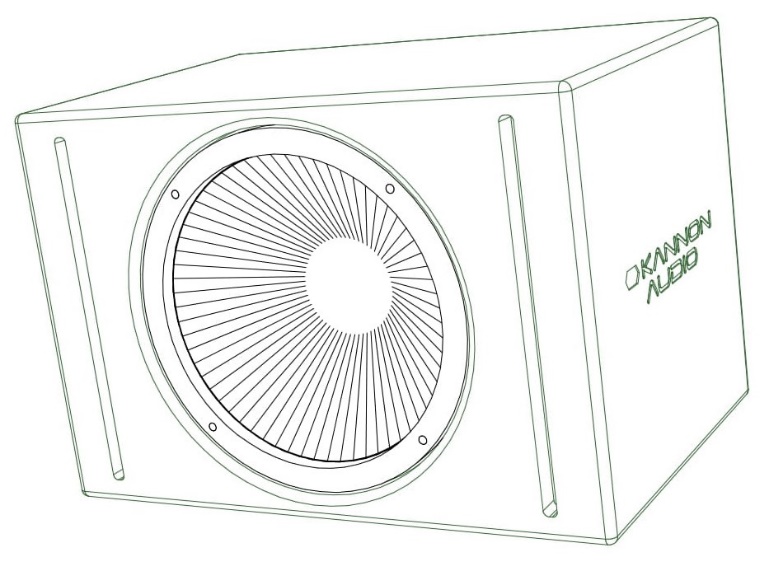

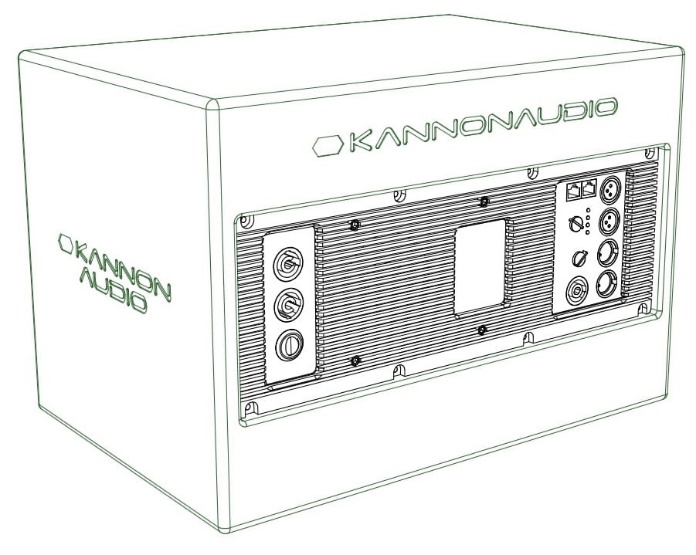

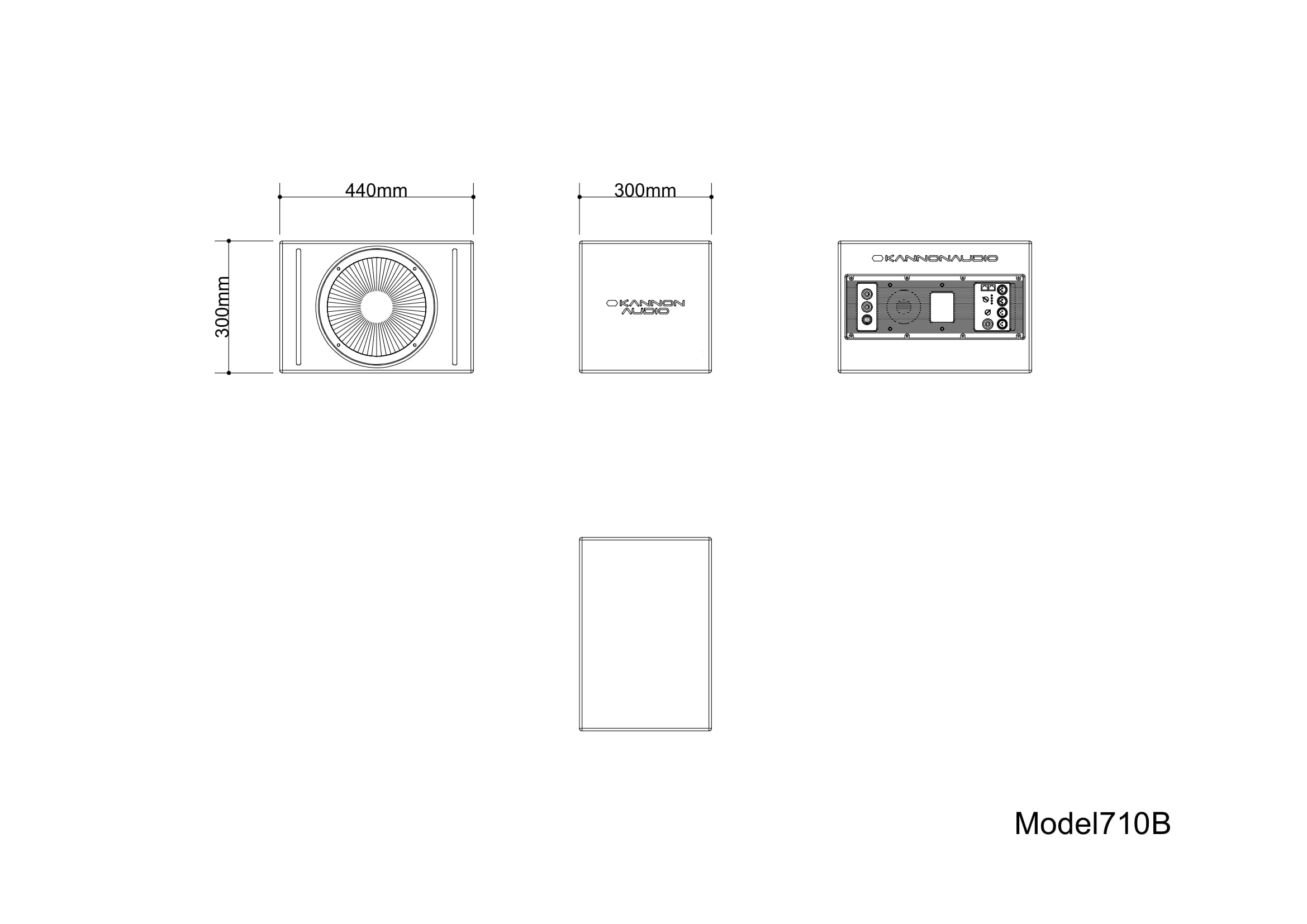

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model710B”. Confirm the specification for your order with Kannonaudio.
