System 700 component

Model 710

Part of System 700. Installation speakers and compact party systems for music bars, lounges, small clubs and smaller events.

Discuss Model 710Hear a system →

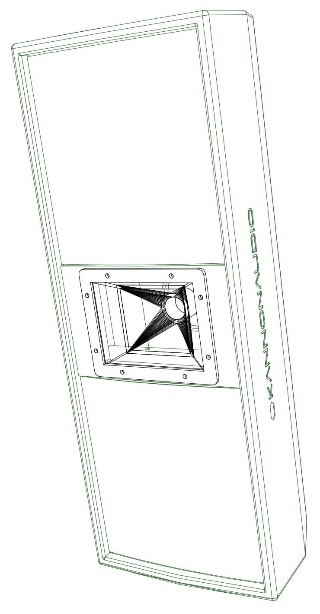

Model 710 primary design view
Design view · Open full size

Product features

  • 16mm MDF enclosure
  • Uses a common NL4 connector

Scroll sideways to see all specifications.

Driver specifications
DriverFrequency characteristicPower (AES)Nominal Impedance
10"60Hz-7kHz350w x 216Ohm
1”1kHz-20kHz50w16Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response80Hz - 20kHz
Connectors2 x NL4
Weight27kg

System notes

Use with system700 sub.

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 710 — cabinet design illustration, view 1
Cabinet design illustration · View full size

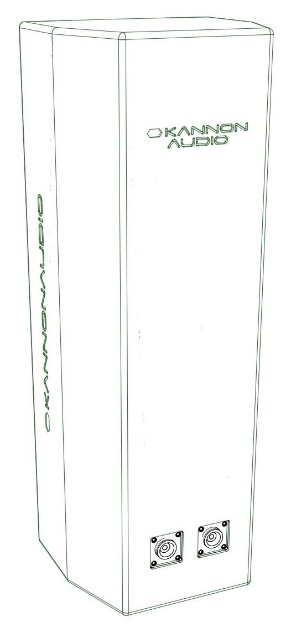

Model 710 — cabinet design illustration, view 2
Cabinet design illustration · View full size

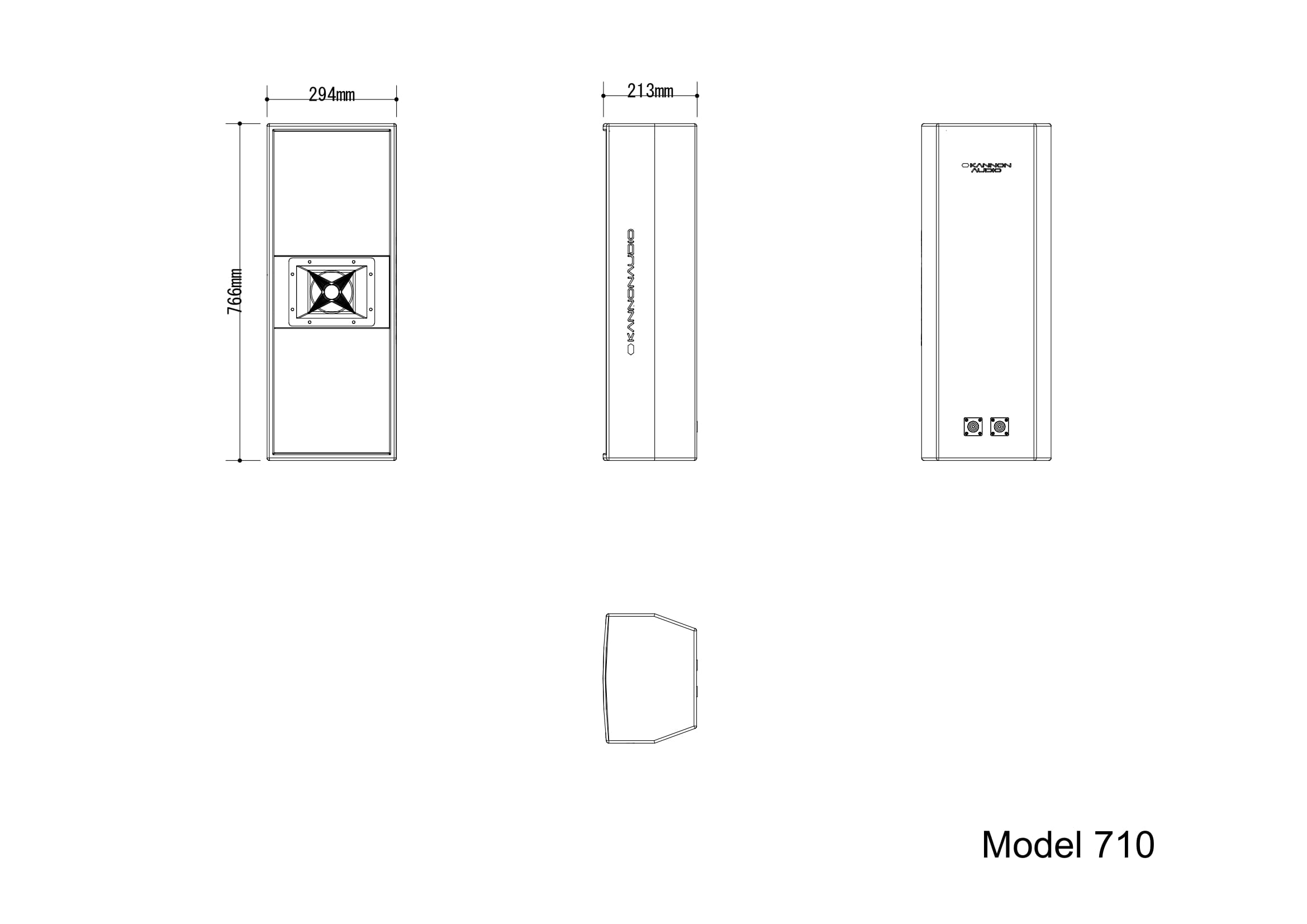

Model 710 — technical drawing, view 3
Technical drawing · View full size
Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model710”. Confirm the specification for your order with Kannonaudio.
