System 600 component

Model 618AEx

Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.

Discuss Model 618AEx Hear a system →

Model 618AEx primary design view — Design view · Open full size

Product features

Extra for Model618A
Achieves weight reduction using 15mm and 18mm plywood
Neutrik speakON* NL4 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
Driver	Frequency characteristic	Power (AES)	Nominal Impedance
18”	35Hz-3kHz	1000w	8Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response	35Hz - 20kHz
Connectors	2 x SpeakON* NL4

System notes

Use with Model618A

Original drawings & downloads

Product view · 618AEX B (PDF)
Product view · 618AEX F (PDF)
Dimensions · 618AEX (PDF)
Cabinet illustration · 618AEX (PDF)

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

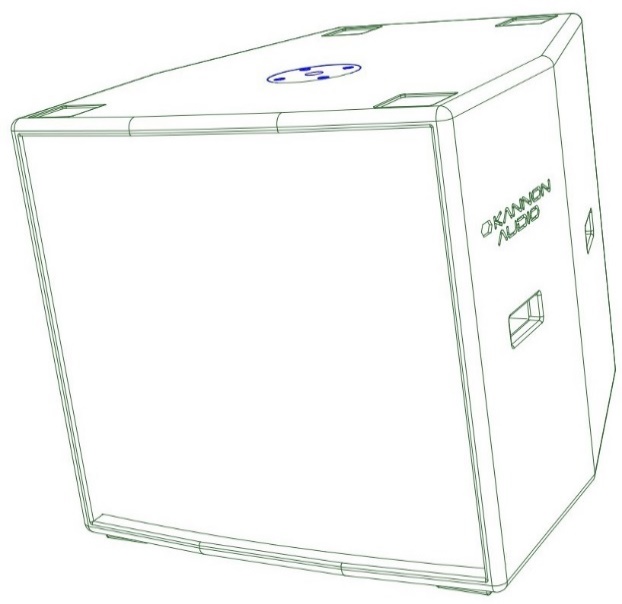

Model 618AEx — cabinet design illustration, view 1 — Cabinet design illustration · View full size

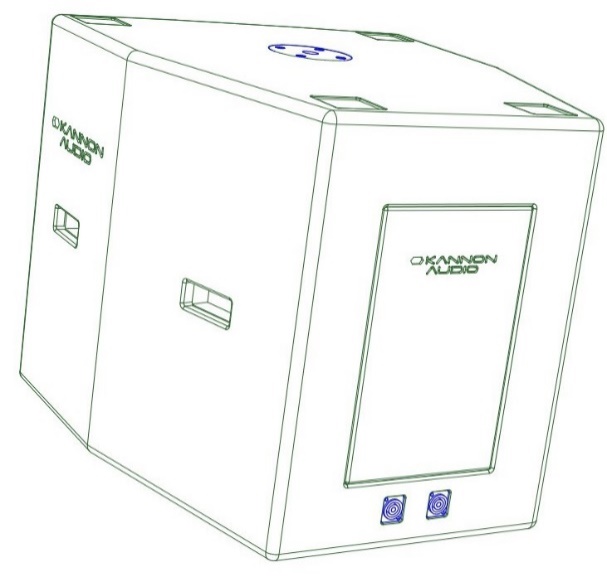

Model 618AEx — cabinet design illustration, view 2 — Cabinet design illustration · View full size

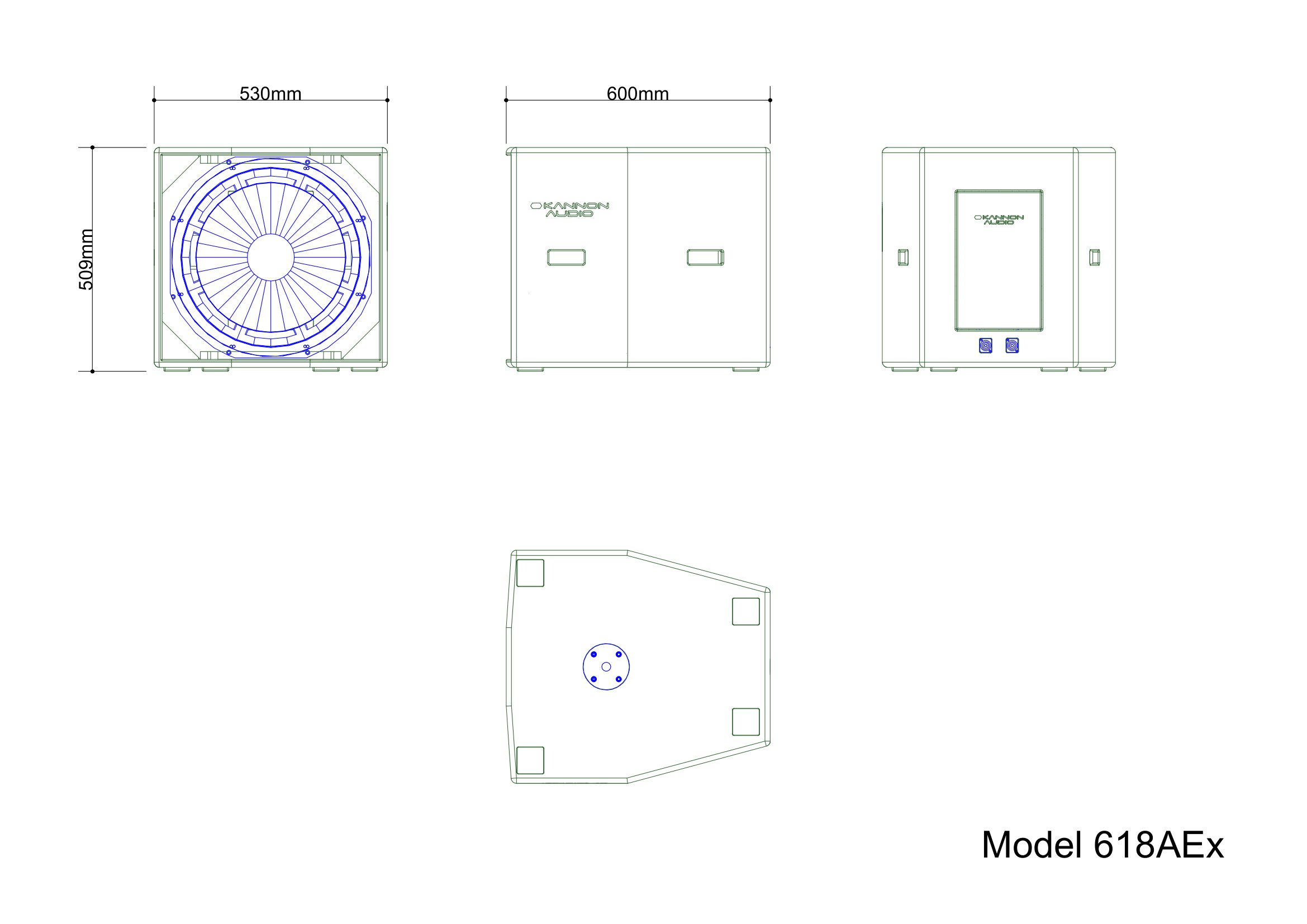

Model 618AEx — technical drawing, view 3 — Technical drawing · View full size

Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model618AEx”. Confirm the specification for your order with Kannonaudio.
