System 600 component
Model 610
Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.
Product features
- Achieves weight reduction using 12mm plywood
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 10" | 60Hz-7kHz | 350w x 2 | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 80Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL4 |
| Weight | 27kg |
System notes
Use with system700 sub.
Original drawings & downloads

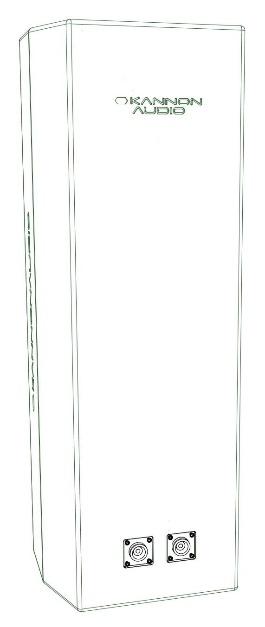

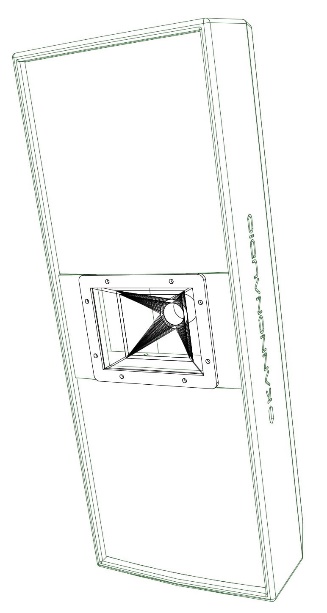

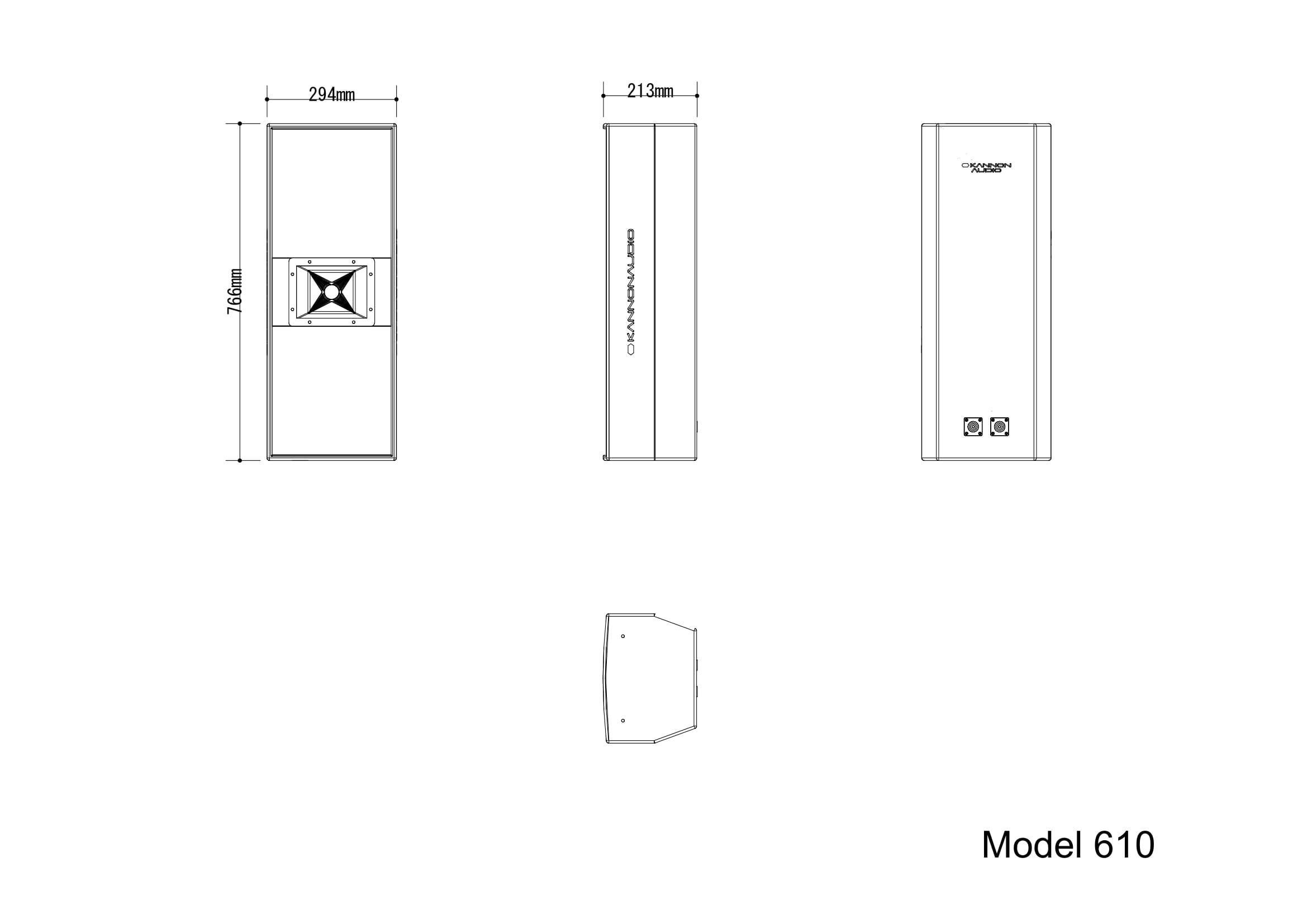

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model610”. Confirm the specification for your order with Kannonaudio.
