System 500 component

Model 504H

Part of System 500. A point-source system designed for large-scale concerts and the main stages of festivals.

Discuss Model 504HHear a system →
Model 504H primary design view
Design view · Open full size

Product features

  • For large venues
  • 18mm plywood enclosure.
  • Neutrik speakON* NL4 connectors for reliable long life opeartion.

Scroll sideways to see all specifications.

Driver specifications
DriverFrequency characteristicPower (AES)Nominal Impedance
18"35Hz-3.5kHz2000W8Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response35Hz - 3.5Hz
Connectors2 x SpeakON* NL4
  • Incorporated into 201B

System notes

For large venues

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

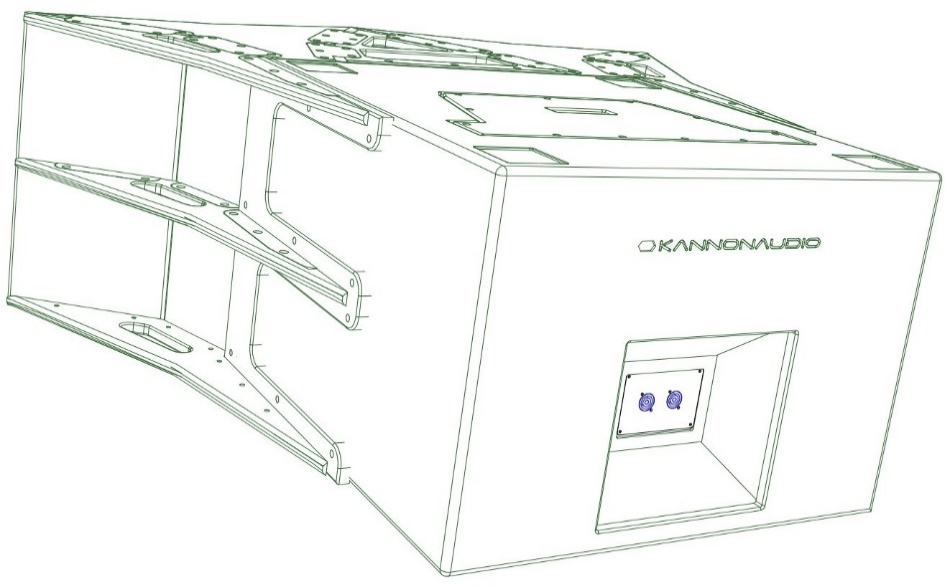

Model 504H — cabinet design illustration, view 1
Cabinet design illustration · View full size

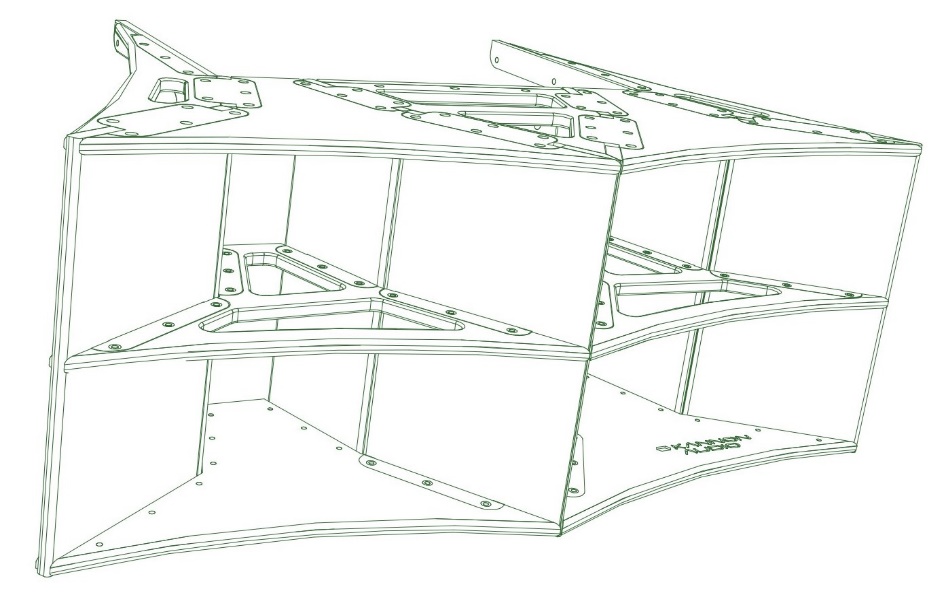

Model 504H — cabinet design illustration, view 2
Cabinet design illustration · View full size

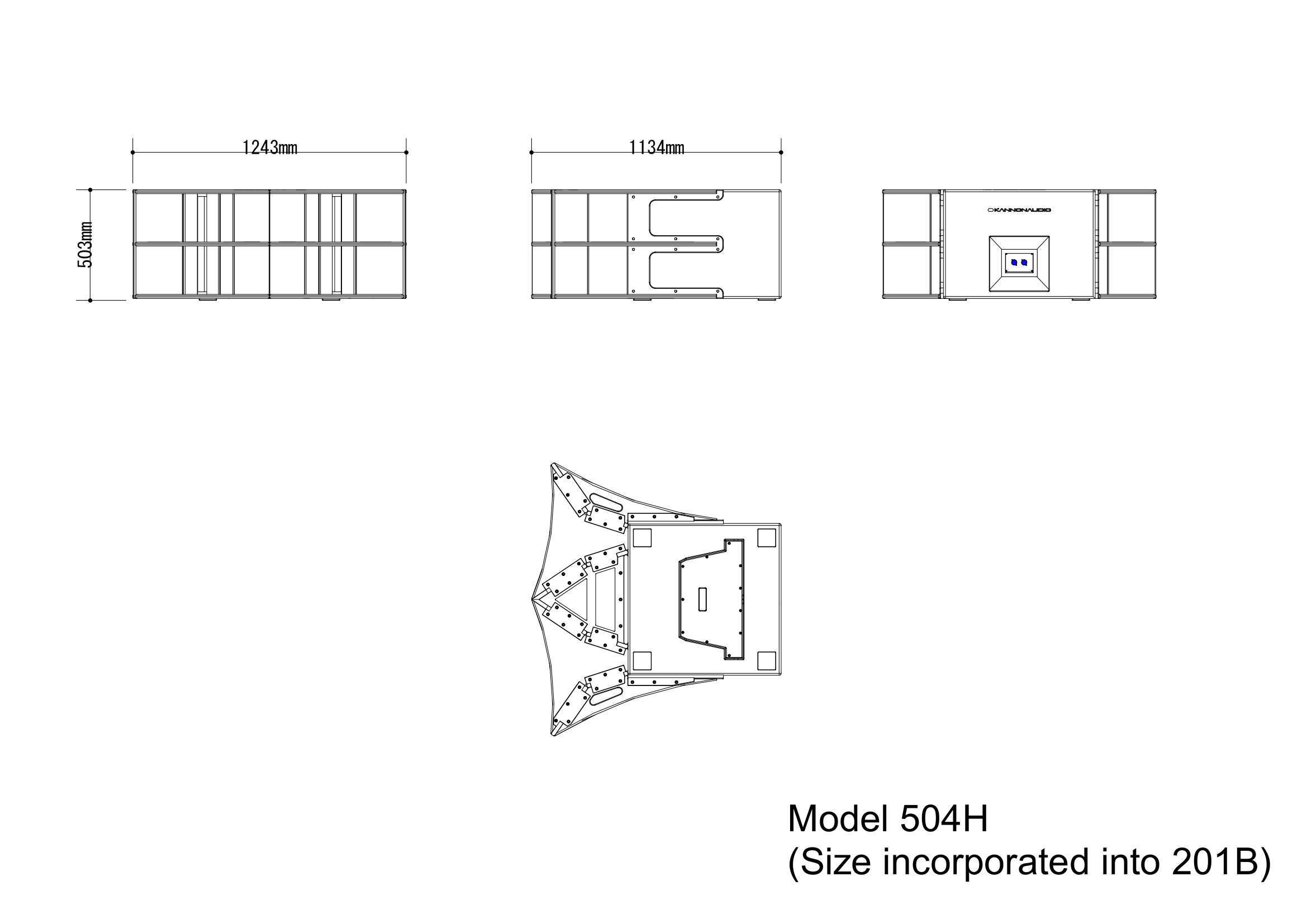

Model 504H — technical drawing, view 3
Technical drawing · View full size
Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model504H”. Confirm the specification for your order with Kannonaudio.
