System 300 component
Model 301T
Part of System 300. A flying line-array system developed with input from live sound engineers for live venues and music festivals.
Model301Ex-T
Product features
- 15mm plywood enclosure
- Low weight Neodymium magnets throughout
- Neutrik speakON* NL8 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 250Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL8 |
System notes
Use with Model301

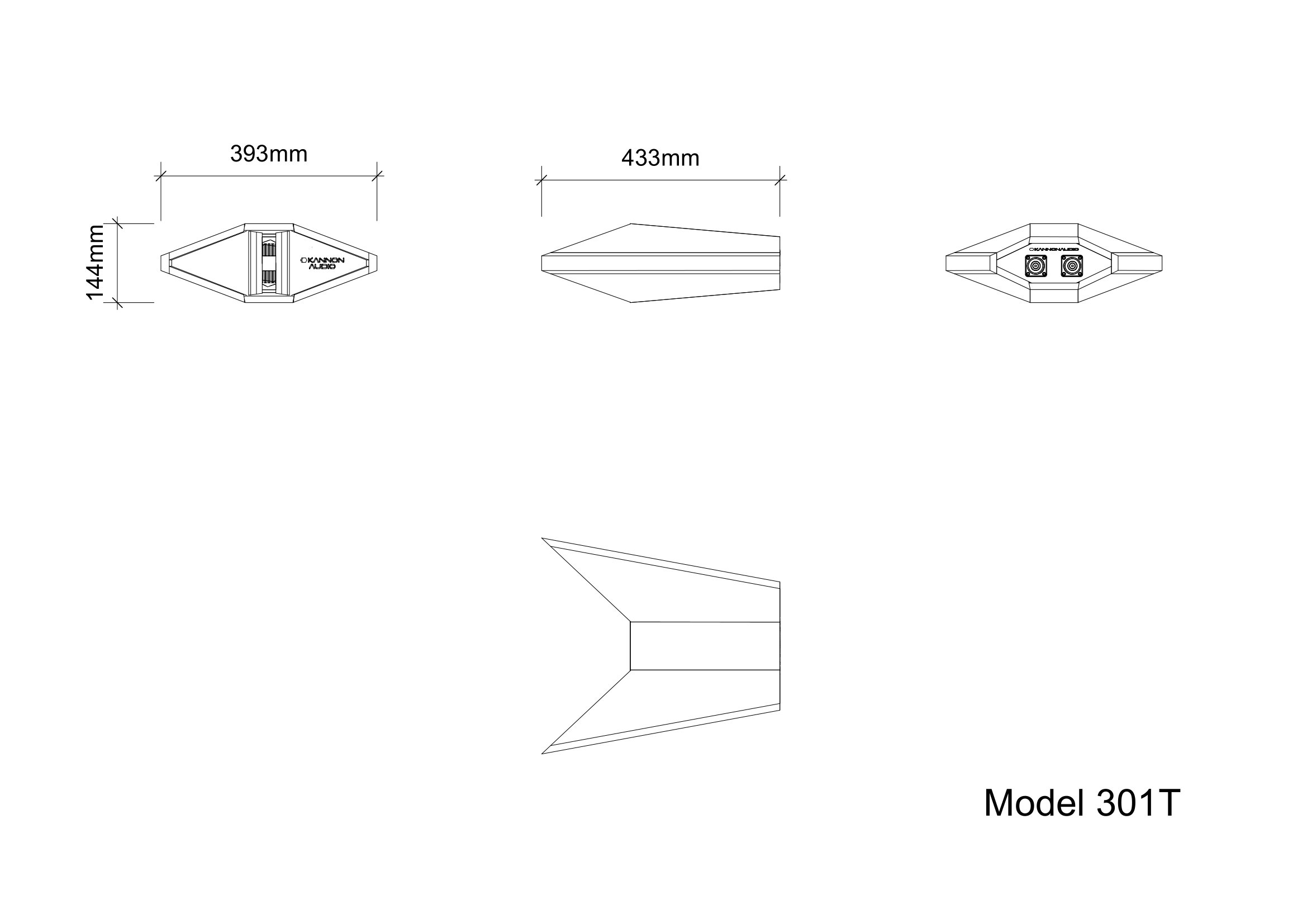

Technical drawings

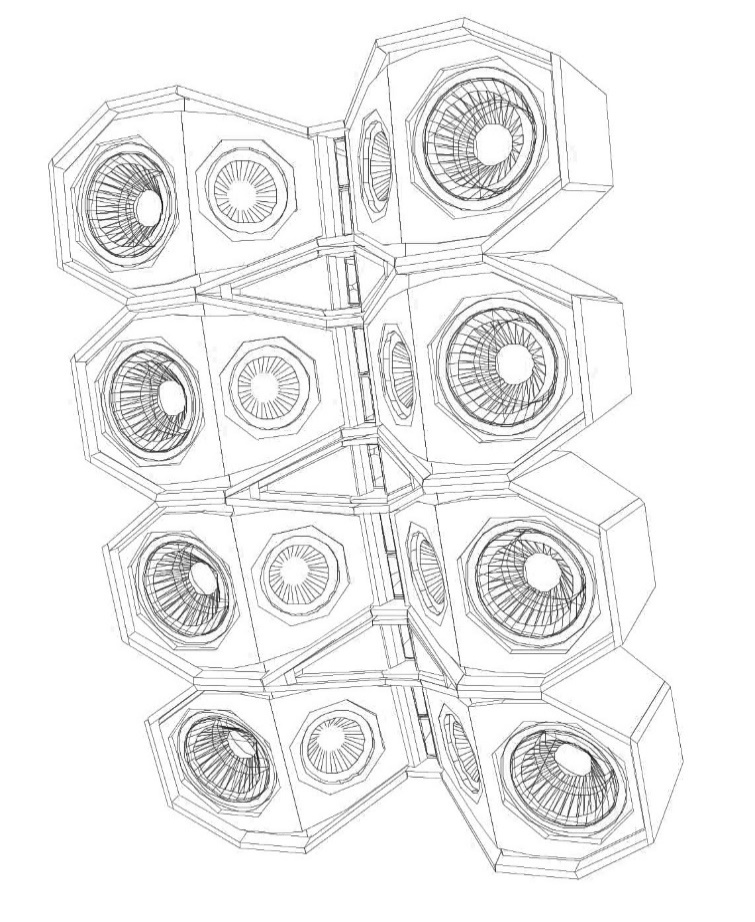

Frying image
Frying system for touring It is frying system for exclusive use of Model301 and Model301T of System300 Vertical is mechanism that allows a minimum adjustment 2.5. This system can cover the venue thoroughly.
Original drawings & downloads

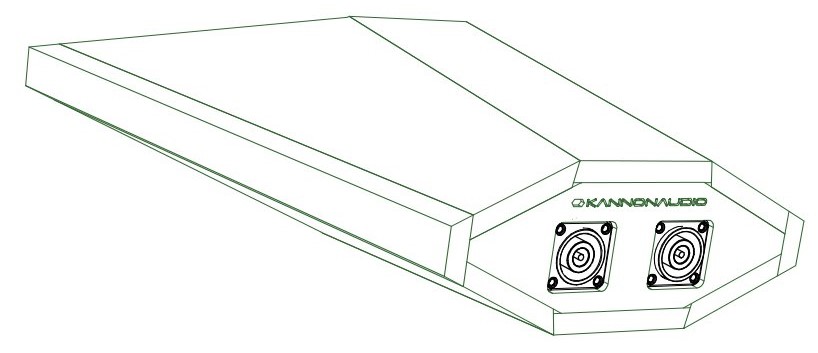

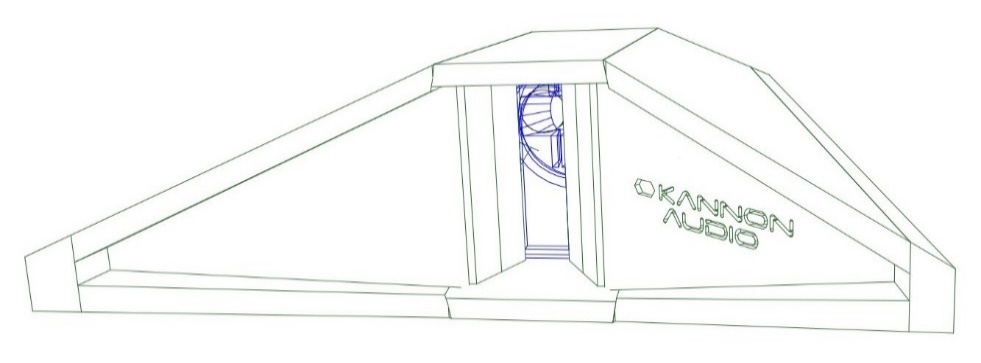

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model301T”. Confirm the specification for your order with Kannonaudio.
