System 200 component

Model 206

Part of System 200. Originally developed for vinyl DJs. A non-horn system for time-aligned surround layouts and stages shared by DJs and live performers.

Discuss Model 206 Hear a system →

Model 206 primary design view — Design view · Open full size

Product features

Achieves weight reduction using 12mm plywood
Uses a common NL4 connector

Scroll sideways to see all specifications.

Driver specifications
Driver	Frequency characteristic	Power (AES)	Nominal Impedance
5"	120Hz-10kHz	100W×2	16Ohm
1”	1kHz-20kHz	50w	16Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response	120Hz - 20kHz
Connectors	2 x NL4

Original drawings & downloads

Product view · 206 B (PDF)
Product view · 206 F (PDF)
Dimensions · 206 (PDF)

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

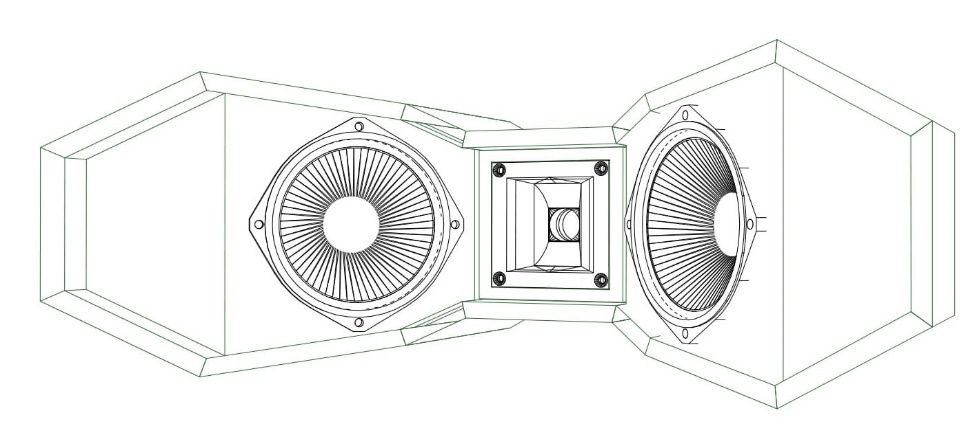

Model 206 — cabinet design illustration, view 1 — Cabinet design illustration · View full size

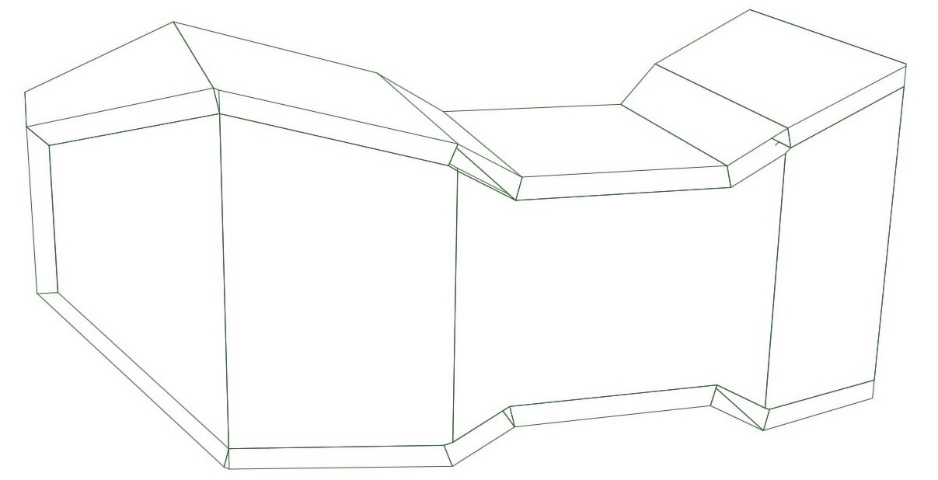

Model 206 — cabinet design illustration, view 2 — Cabinet design illustration · View full size

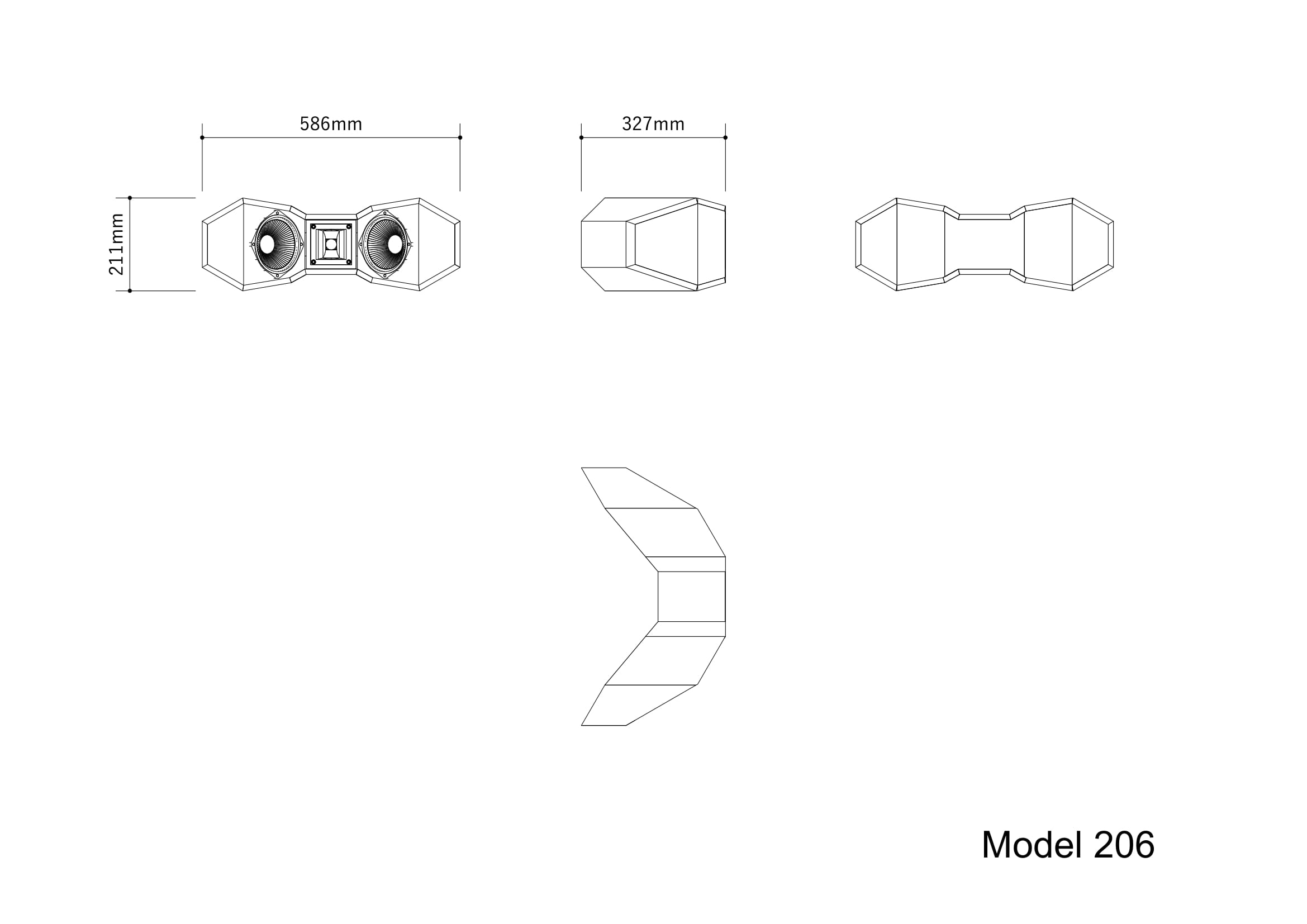

Model 206 — technical drawing, view 3 — Technical drawing · View full size

Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model206”. Confirm the specification for your order with Kannonaudio.
