System 200 component

Model 203B

Part of System 200. Originally developed for vinyl DJs. A non-horn system for time-aligned surround layouts and stages shared by DJs and live performers.

Discuss Model 203BHear a system →

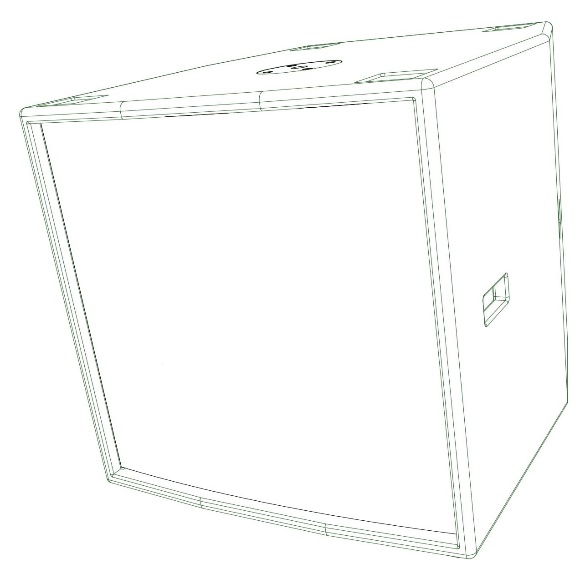

Model 203B primary design view
Design view · Open full size

Product features

  • Model203 dedicated Sub woofer.
  • By adopting the Bass reflex type, sound pressure and deep bass are reproduced.
  • 18mm plywood enclosure.
  • Neutrik speakON* NL4 connectors for reliable long life opeartion.

Scroll sideways to see all specifications.

Driver specifications
DriverFrequency characteristicPower (AES)Nominal Impedance
18"35Hz-3.5kHz1000W8Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response35Hz - 3.5Hz
Connectors2 x SpeakON* NL4

System notes

Use with Model203

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 203B — cabinet design illustration, view 1
Cabinet design illustration · View full size

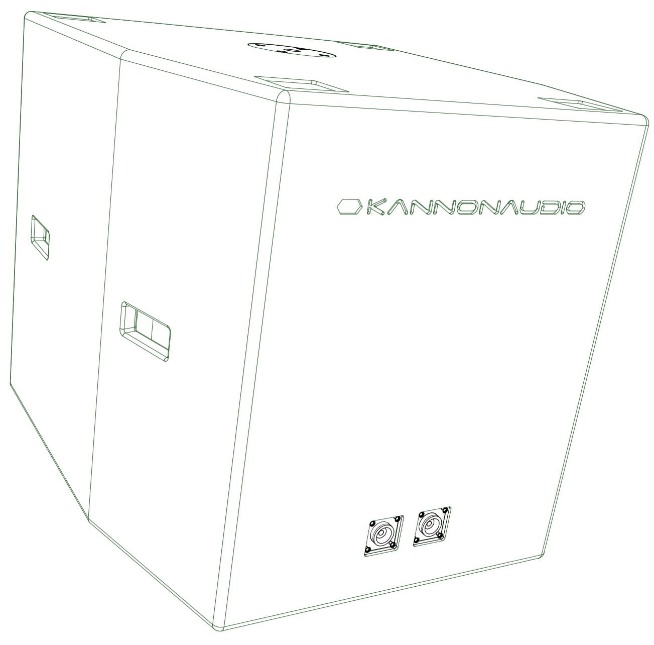

Model 203B — cabinet design illustration, view 2
Cabinet design illustration · View full size

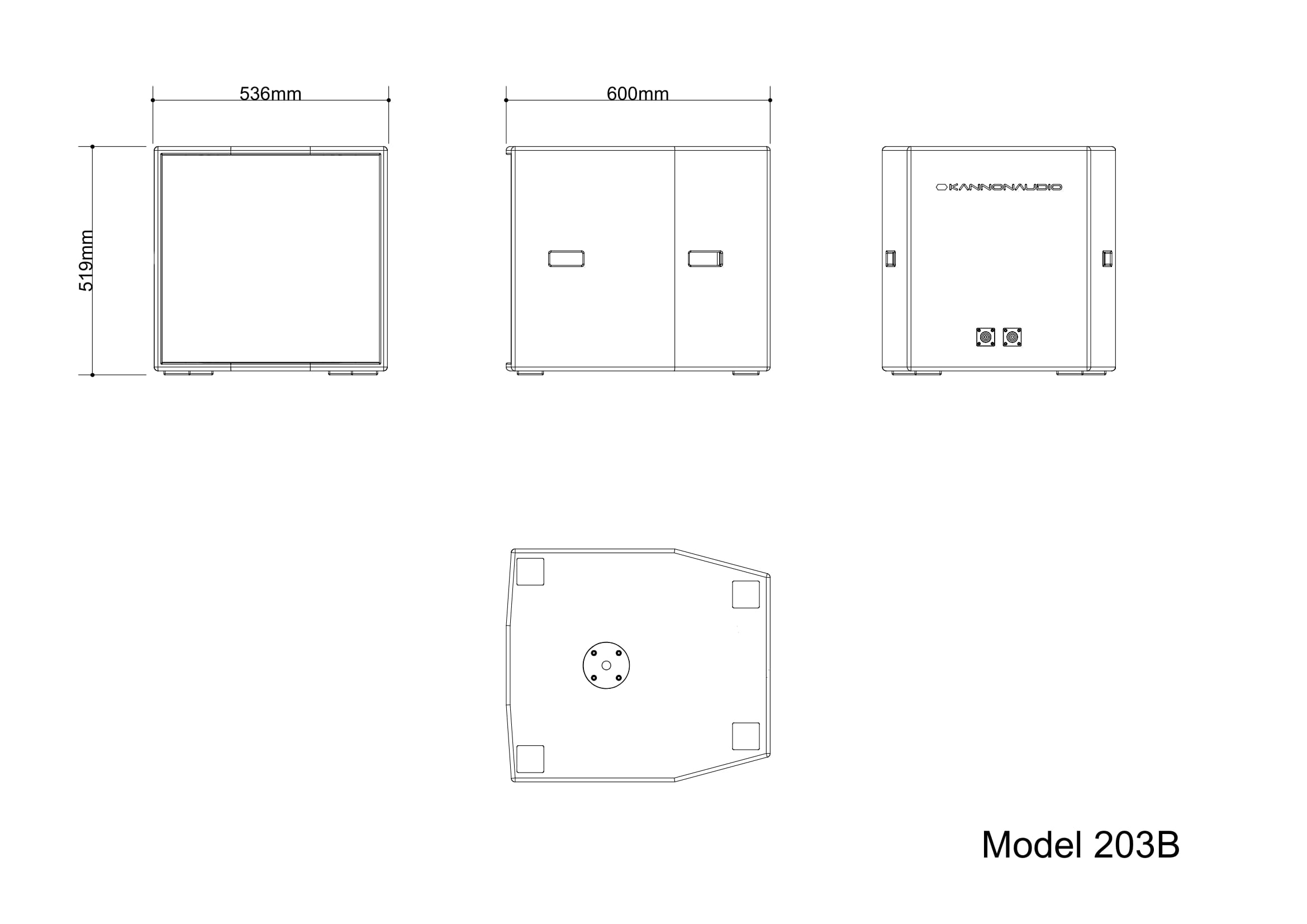

Model 203B — technical drawing, view 3
Technical drawing · View full size
Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model203B”. Confirm the specification for your order with Kannonaudio.
