System 200 component

Model 203M

Part of System 200. Originally developed for vinyl DJs. A non-horn system for time-aligned surround layouts and stages shared by DJs and live performers.

Discuss Model 203MHear a system →
Model 203M primary design view
Design view · Open full size

Product features

  • Achieves weight reduction using 12mm plywood
  • Neutrik speakON* NL4 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
DriverFrequency characteristicPower (AES)Nominal Impedance
5"120Hz-10kHz100W×216Ohm
1”1kHz-20kHz50w16Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response120Hz - 20kHz
Connectors2 x SpeakON* NL4

System notes

Use with system203.

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

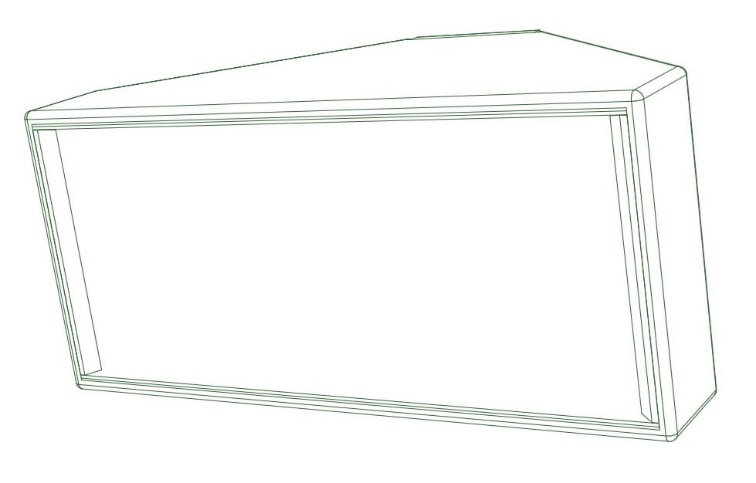

Model 203M — cabinet design illustration, view 1
Cabinet design illustration · View full size

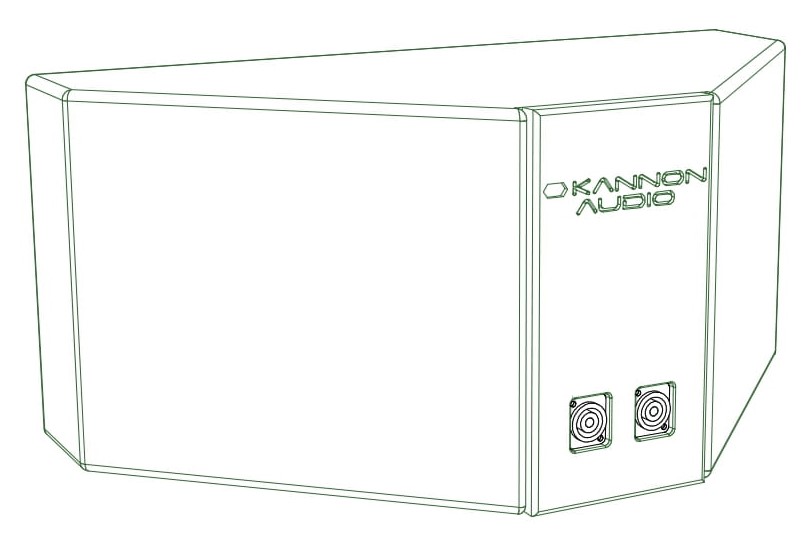

Model 203M — cabinet design illustration, view 2
Cabinet design illustration · View full size

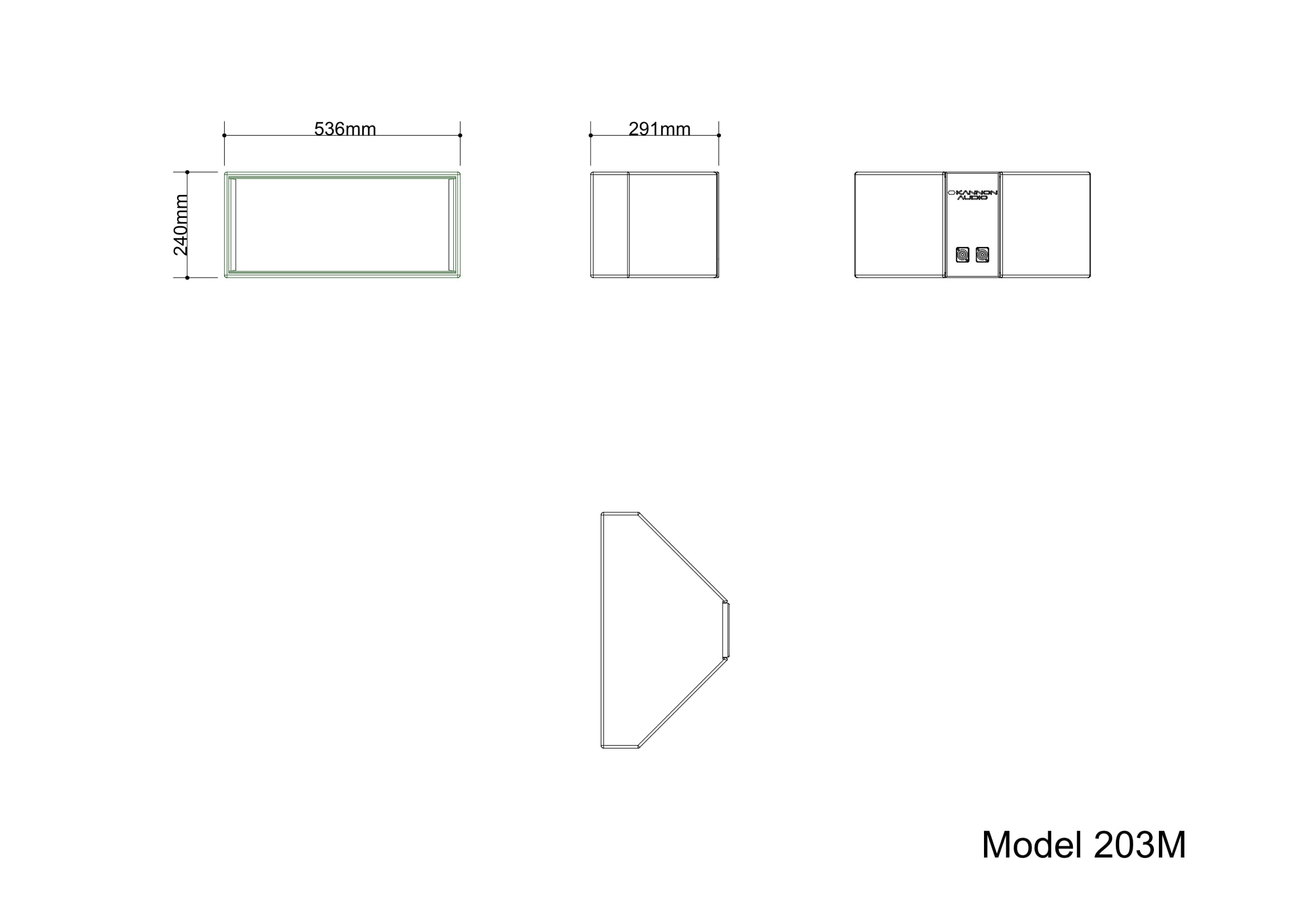

Model 203M — technical drawing, view 3
Technical drawing · View full size
Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model203M”. Confirm the specification for your order with Kannonaudio.
