System 200 component
Model 201
Part of System 200. Originally developed for vinyl DJs. A non-horn system for time-aligned surround layouts and stages shared by DJs and live performers.
Product features
- Grand stack model
- Near field speaker
- 15mm plywood enclosure
- Low weight Neodymium magnets throughout
- Neutrik speakON* NL8 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 12" | 40Hz-1.5kHz | 1000W | 8Ohm |
| 5" | 240Hz-10kHz | 100W×2 | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 40Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL8 |
System notes
Model201 and Model201B and Model202 features the same width and smart stack. Use with Model201B.
Accessories
- Spacer
Original drawings & downloads

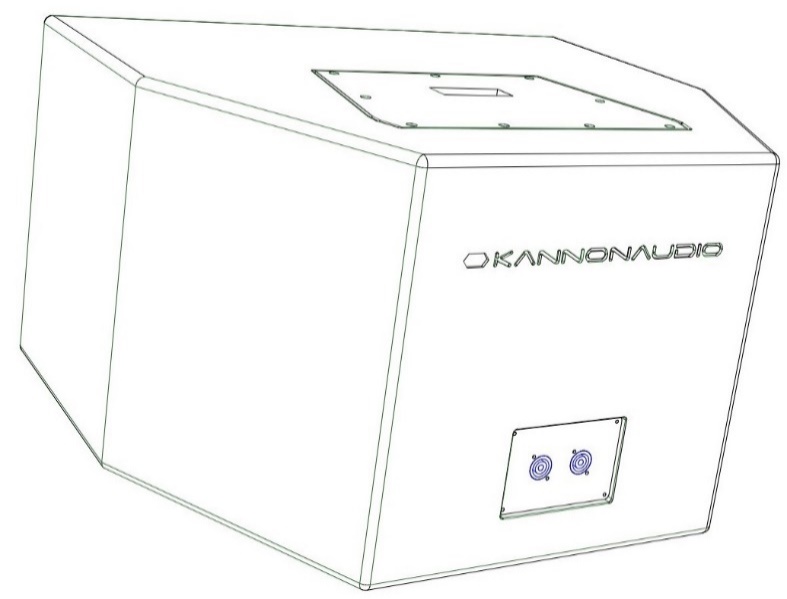

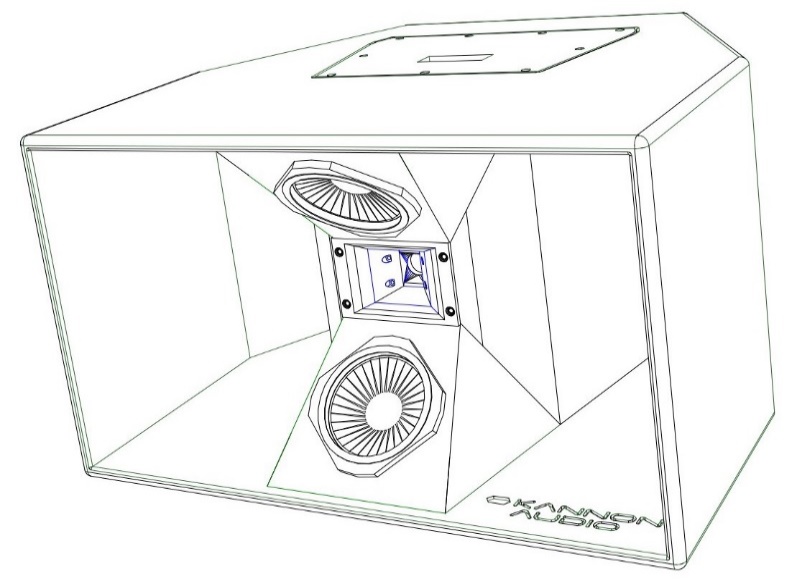

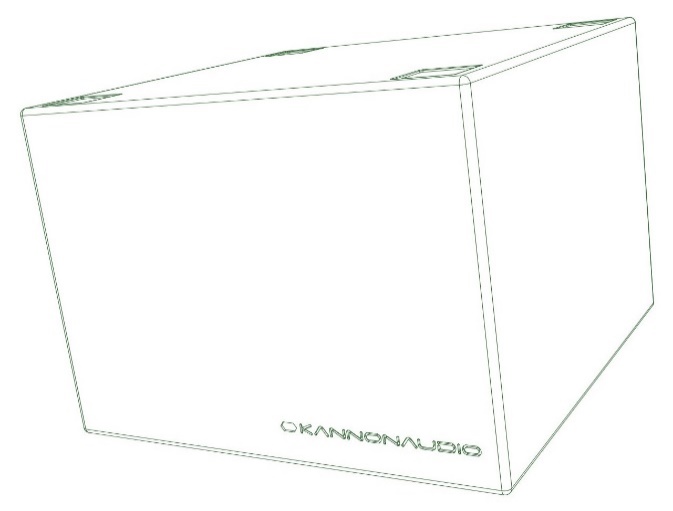

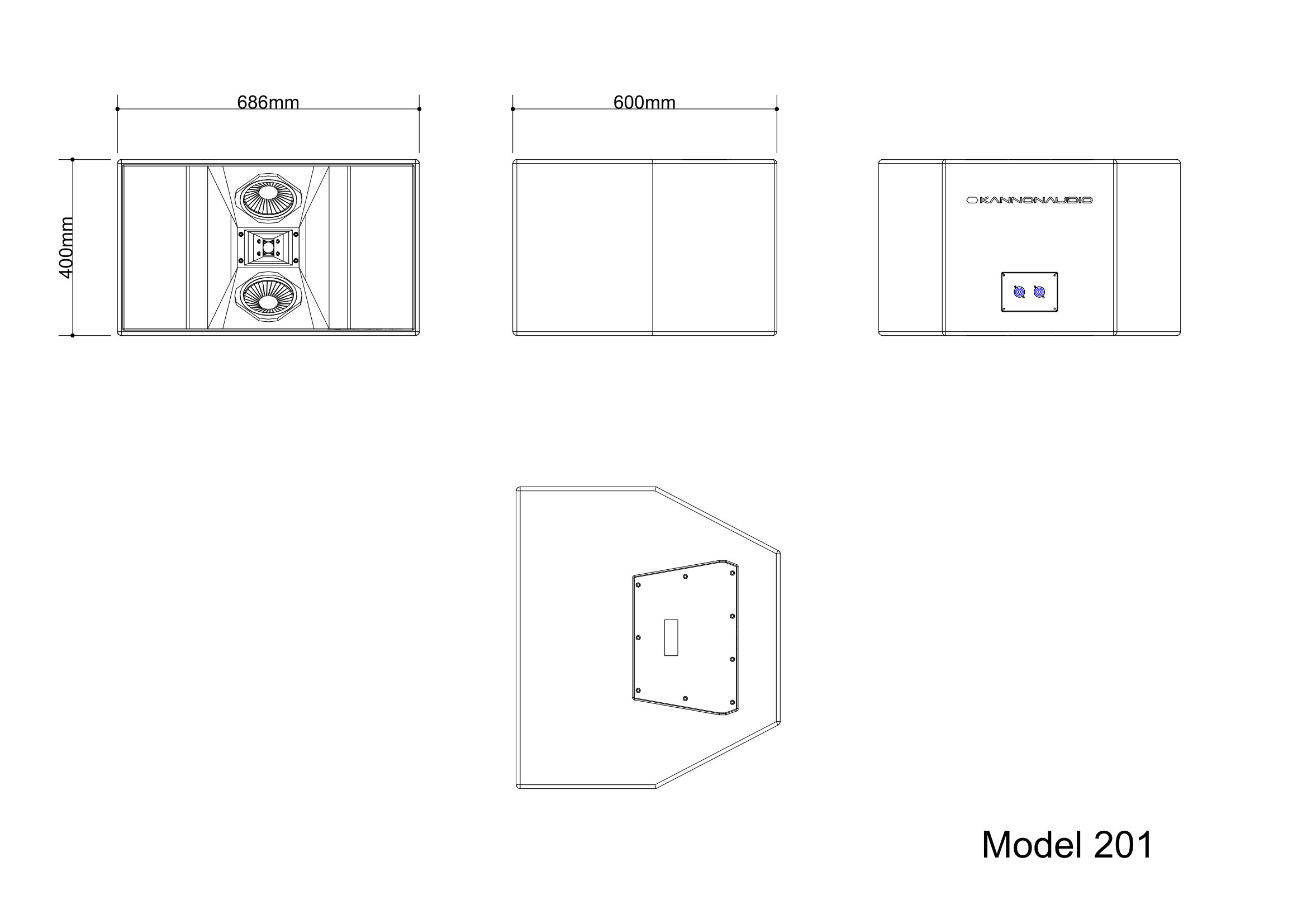

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model201”. Confirm the specification for your order with Kannonaudio.
