System100 option
Manufacturer specifications and illustrations for planning your installation.

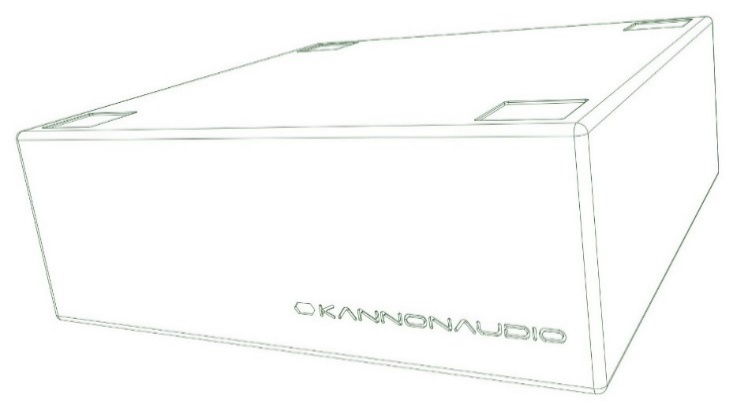

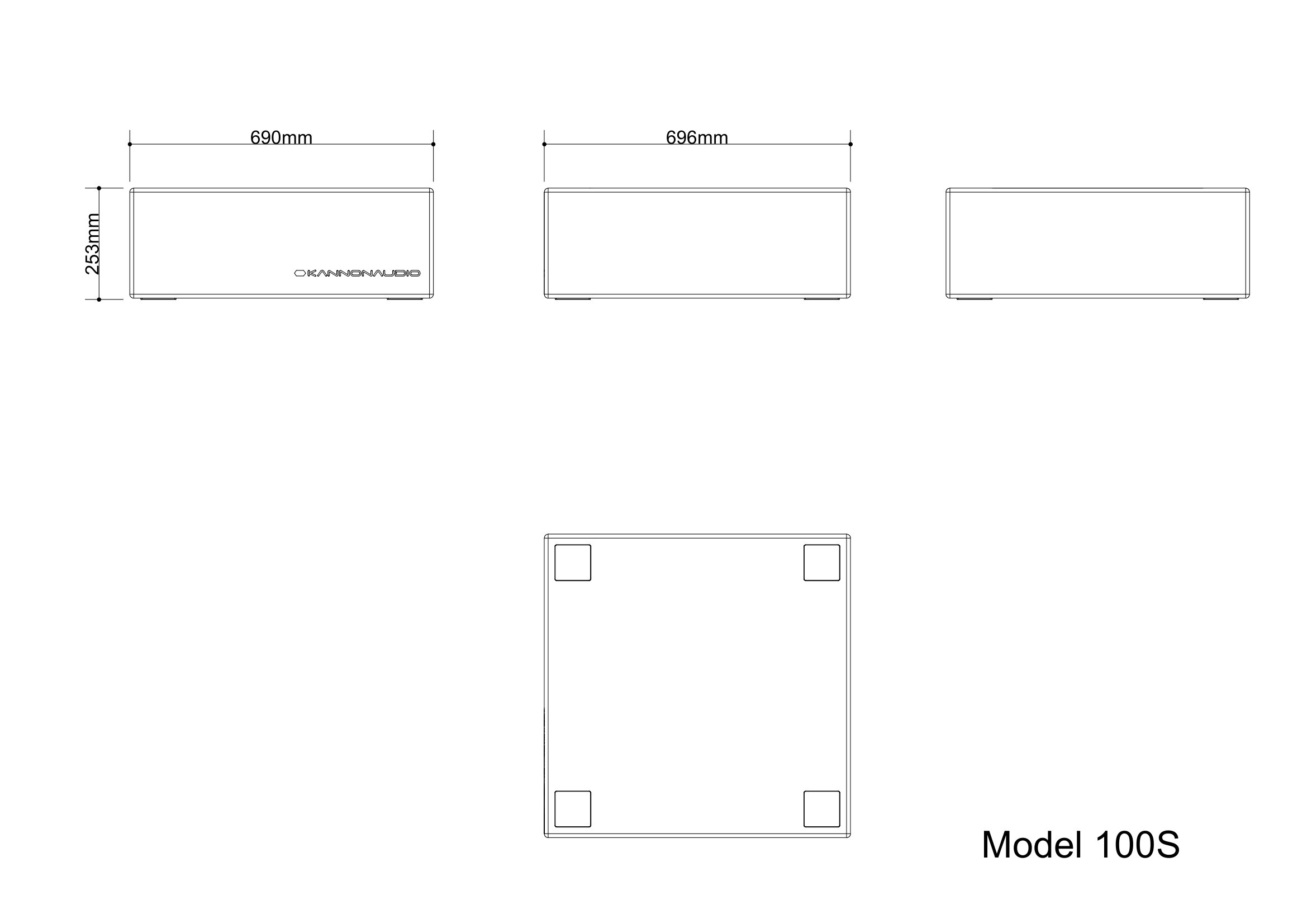

Spacer for Model100
Product features
- Grand stack spacer
Technical drawings

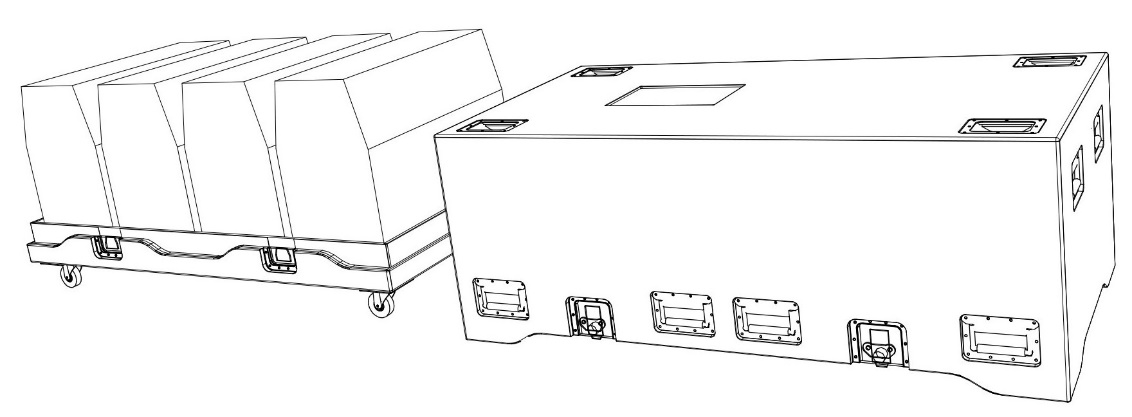

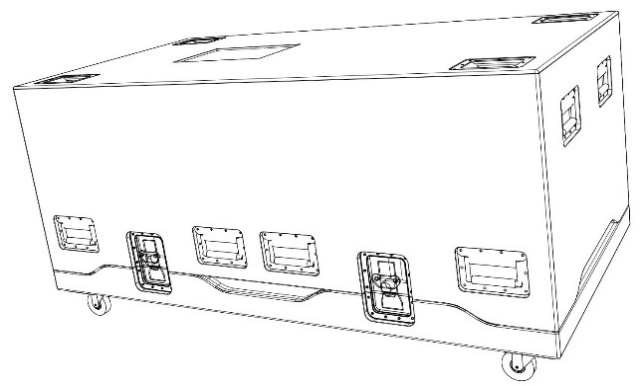

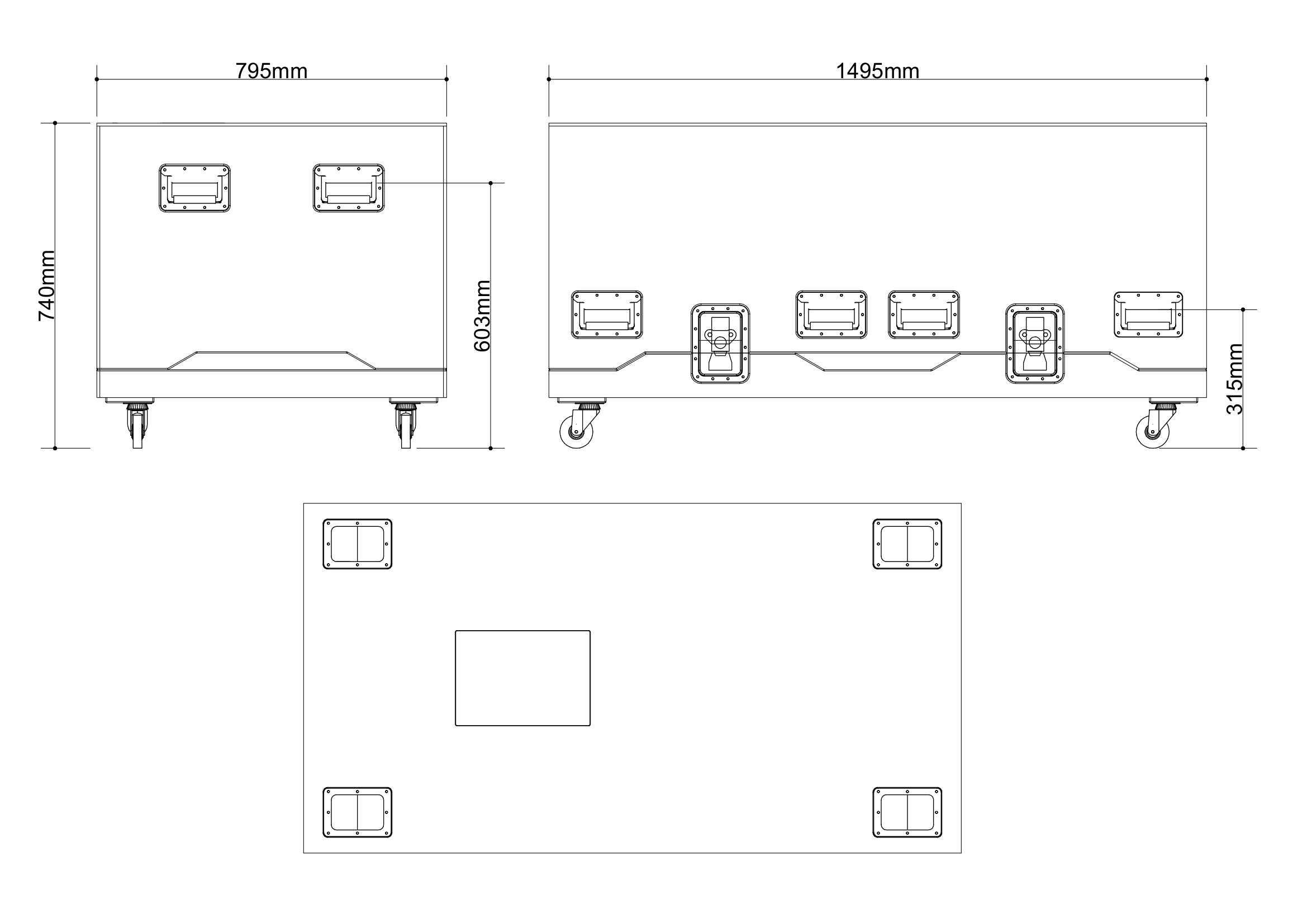

Case for Model101& Model102
Product features
- Case for Model101 Model102
Technical drawings

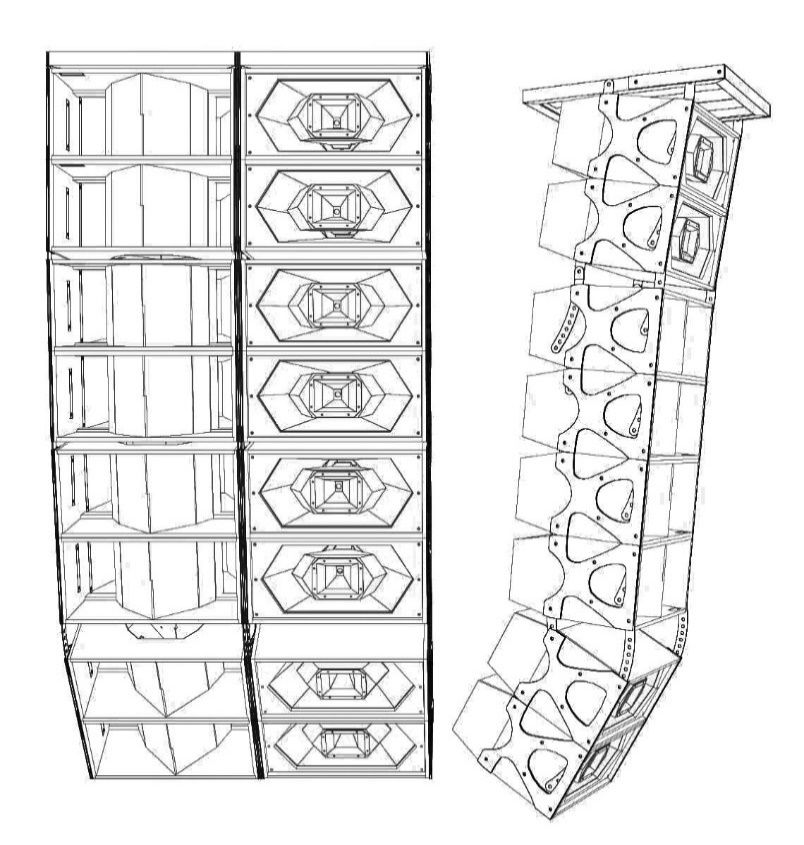

Frying system for System100
Frying system for touring It is frying system for exclusive use of Model101 and Model102 of System100 Vertical is mechanism that allows a minimum adjustment 2.5. This system can cover the venue thoroughly.
Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “System100 option”. Confirm the specification for your order with Kannonaudio.
